Principal Components Analysis

Week 10

Author

Jessica Cooperstone

Introduction

Today we are going to start Module 4 where we put together a lot of the material we’ve learned in the first 3 modules of this course. Today’s material is on conducting principal components analysis (PCA) using R, and visualizing the results with some tools we’ve already learned to use, and some new wrangling and viz tips along the way.

PCA is a data reduction approach, and useful if you have many variables, for example, thousands of genes or metabolites. PCA creates summary variables (the principal components) which maximize the variation in the dataset. It can be categorized as an unsupervised approach, as PCA doesn’t know which samples belong to your different groups. When you look at a scores plot, points that are closer together are more similar based on your input data, and those further apart are more different. The location of the loadings helps you understand what is driving those differences in your scores plot.

If you are unfamiliar with PCA, I’d recommend these two Youtube videos by Josh Starmer of StatQuest which explain PCA in 5 mins, or with more detail in 20 min. Bam 💥!

library(tidyverse) # everything
library(readxl) # reading in excel sheets
library(factoextra) # easy PCA plotting
library(glue) # easy pasting

Read in data

Today we are going to continue to use the same real research data from my group from the lessons on distributions and correlations. We will be reading in the supplementary data from a paper from my group written by Michael Dzakovich, and published in The Plant Genome. The data is present in a Excel worksheet, so we will use the function read_excel() from the tidyverse (but not core tidyverse) package readxl. We want to import Supplemental Table 3. You can indicate which sheet you want to import in the arguments to read_excel().

alkaloid_blups <- read_excel("data/tpg220192-sup-0002-supmat.xlsx",
                             sheet = "S3 BLUP Diversity Panel")

Let’s take a look at this new data sheet.

knitr::kable(head(alkaloid_blups))

Genotype	Plot_Source	Species	Class	Origin	Provence	Blanca_Cluster1	Blanca_Cluster2	Passport_Species	Passport_Classification	Sim_Grouping	Dehydrotomatidine	Tomatidine	DehydrotomatineA1	Dehydrotomatine2	TotalDehydrotomatine	Tomatine	Hydroxytomatine1	Hydroxytomatine2	Hydroxytomatine3	Hydroxytomatine4	TotalHydroxytomatine	Acetoxytomatine1	Acetoxytomatine2	Acetoxytomatine3	TotalAcetoxytomatine	DehydrolycoperosideFGdehydroesculeosideA	LycoperosideFGEsculeosideA1	LycoperosideFGEsculeosideA2	TotalLycoperosideFGEsculeosideA	EsculeosideB1	EsculeosideB2	EsculeosideB3	TotalEsculeosideB	Total	Latitude	Longitude
CULBPT_05_11	2K9-8584	Processing	Cultivated Processing	USA	NY	SLL_processing_2	SLL_processing_2	SLL	SLL_processing_NY	Arid	0.0001504	0.0043495	0.0072241	-0.0010738	0.0061503	0.1929106	0.0102521	0.1596566	0.0352666	0.0864042	0.2917962	-0.0680508	-0.1242448	0.0117481	-0.1805475	-0.0369856	0.0056573	-0.1693034	-0.1636462	-0.0340685	-0.0061713	-0.0371543	-0.0773942	0.0365648	40.712800000000001	-74.006
CULBPT_05_15	2K9-8622	Processing	Cultivated Processing	USA	NY	SLL_processing_2	SLL_processing_2	SLL	SLL_processing_NY	Arid	-0.0000272	-0.0001716	0.0086547	0.0000000	0.0086547	0.2824926	0.0006910	0.1118818	0.0243950	0.0189345	0.1559021	0.0038232	0.0467380	0.0024737	0.0530349	0.0066251	0.0125334	0.3417664	0.3542998	0.0138429	0.0021833	0.0139309	0.0299571	0.8907677	40.712800000000001	-74.006
CULBPT_05_22	2K17-7708-1	Processing	Cultivated Processing	USA	NY	SLL_processing_2	SLL_processing_2	SLL	SLL_processing_NY	Arid	-0.0000649	-0.0002516	0.0085205	0.0000000	0.0085205	0.1755250	-0.0001804	0.0505547	0.0040900	0.0023229	0.0576202	0.0078240	0.0069610	-0.0001145	0.0146705	0.0031468	0.0150674	0.3840689	0.3991363	0.0007128	0.0008227	0.0028133	0.0043489	0.6618186	40.712800000000001	-74.006
CULBPT04_1	2K9-8566	Processing	Cultivated Processing	USA	NY	SLL_processing_2	SLL_processing_2	SLL	SLL_processing_NY	Arid	-0.0000272	0.0001259	-0.0038737	0.0000000	-0.0038737	-0.0061446	0.0015930	0.1059454	0.0195829	0.0083566	0.1354779	0.0098585	0.0095344	0.0007941	0.0201870	0.0049377	0.0100416	0.3466282	0.3566699	0.0100830	0.0006432	0.0089015	0.0196277	0.5269806	40.712800000000001	-74.006
E6203	2K9-8600	Processing	Cultivated Processing	USA	CA	SLL_processing_1	SLL_processing_1_1	SLL	SLL_processing_CA	Arid	-0.0000272	0.0000159	0.0099538	0.0000000	0.0099538	0.2929606	0.0000000	0.0227075	0.0039160	0.0088279	0.0354514	0.0002365	0.0395374	0.0041794	0.0439532	0.0027439	0.0133225	0.3018732	0.3151958	0.0080894	-0.0003574	0.0100045	0.0177365	0.7179839	36.778300000000002	-119.4179
F06-2041	2K16-9843	Processing	Cultivated Processing	USA	OH	SLL_processing_1	SLL_processing_1_3	SLL	SLL_processing_OH	Humid	-0.0000272	-0.0001648	-0.0011236	0.0000000	-0.0011236	0.0169681	0.0011237	0.0195573	-0.0016308	-0.0016069	0.0188454	-0.0004237	0.0271524	-0.0005286	0.0262002	0.0053084	0.0049033	0.1647694	0.1696728	-0.0006298	-0.0003074	0.0019315	0.0009943	0.2352713	40.417299999999997	-82.9071

What are the dimensions of this dataframe?

dim(alkaloid_blups)

[1] 107  37

Light wrangling

Here we have the best linear unbiased predictors (BLUPs) representing the alkaloid content of 107 genotypes of tomatoes. There is extra meta-data here we won’t use, so like we did in correlations, we are going to create a vector to indicate which column name reprents the alkaloids we want to include in our principal components analysis. Then we can create a new trimmed dataframe.

alkaloid_total_names <- c("Dehydrotomatidine",
                          "Tomatidine",
                          "TotalDehydrotomatine",
                          "Tomatine",
                          "TotalHydroxytomatine",
                          "TotalAcetoxytomatine",
                          "DehydrolycoperosideFGdehydroesculeosideA",
                          "TotalLycoperosideFGEsculeosideA",
                          "TotalEsculeosideB",
                          "Total")

alkaloid_blups_trim <- alkaloid_blups |>
  select(Genotype, Species, Class, all_of(alkaloid_total_names))

# did it work?
colnames(alkaloid_blups_trim) # yes

 [1] "Genotype"
 [2] "Species"
 [3] "Class"
 [4] "Dehydrotomatidine"
 [5] "Tomatidine"
 [6] "TotalDehydrotomatine"
 [7] "Tomatine"
 [8] "TotalHydroxytomatine"
 [9] "TotalAcetoxytomatine"
[10] "DehydrolycoperosideFGdehydroesculeosideA"
[11] "TotalLycoperosideFGEsculeosideA"
[12] "TotalEsculeosideB"
[13] "Total"

Run PCA

There are many packages that have functions that run PCA (including ) but I think the most common function used is a part of base R, and is called prcomp().

Warning

Note, PCA will allow zeroes, but will throw an error if you feed it NAs.

alkaloids_pca <- prcomp(alkaloid_blups_trim |> select(all_of(alkaloid_total_names)),
                        scale = TRUE, # default is false
                        center = TRUE) # default is true, just being explicit

Let’s investigate alkaloids_pca.

glimpse(alkaloids_pca)

List of 5
 $ sdev    : num [1:10] 1.794 1.732 1.215 0.99 0.776 ...
 $ rotation: num [1:10, 1:10] 0.162 0.309 0.422 0.326 0.311 ...
  ..- attr(*, "dimnames")=List of 2
  .. ..$ : chr [1:10] "Dehydrotomatidine" "Tomatidine" "TotalDehydrotomatine" "Tomatine" ...
  .. ..$ : chr [1:10] "PC1" "PC2" "PC3" "PC4" ...
 $ center  : Named num [1:10] 0.000169 0.00721 0.142798 1.865975 1.323755 ...
  ..- attr(*, "names")= chr [1:10] "Dehydrotomatidine" "Tomatidine" "TotalDehydrotomatine" "Tomatine" ...
 $ scale   : Named num [1:10] 0.000505 0.024096 0.339379 5.889986 2.91824 ...
  ..- attr(*, "names")= chr [1:10] "Dehydrotomatidine" "Tomatidine" "TotalDehydrotomatine" "Tomatine" ...
 $ x       : num [1:107, 1:10] -1.51 -1.5 -1.55 -1.55 -1.52 ...
  ..- attr(*, "dimnames")=List of 2
  .. ..$ : NULL
  .. ..$ : chr [1:10] "PC1" "PC2" "PC3" "PC4" ...
 - attr(*, "class")= chr "prcomp"

print(alkaloids_pca)

Standard deviations (1, .., p=10):
 [1] 1.7944141686 1.7318715307 1.2151400892 0.9904494488 0.7763914595
 [6] 0.6695313752 0.4394142511 0.2041300753 0.1932182462 0.0001503975

Rotation (n x k) = (10 x 10):
                                               PC1         PC2         PC3
Dehydrotomatidine                        0.1621938  0.05363402 -0.06746652
Tomatidine                               0.3088504 -0.13094437 -0.44243776
TotalDehydrotomatine                     0.4222731 -0.30216776 -0.22116400
Tomatine                                 0.3263804 -0.28919346 -0.43424991
TotalHydroxytomatine                     0.3111090 -0.07515005  0.42780515
TotalAcetoxytomatine                     0.3190534 -0.17396967  0.54287286
DehydrolycoperosideFGdehydroesculeosideA 0.2125680  0.49447329 -0.07346836
TotalLycoperosideFGEsculeosideA          0.2130280  0.52056383 -0.08463631
TotalEsculeosideB                        0.1864604  0.50165801 -0.10122926
Total                                    0.5191805  0.04443498  0.24834278
                                                 PC4          PC5         PC6
Dehydrotomatidine                         0.92897283 -0.275272461 -0.09845544
Tomatidine                                0.13150651  0.482582095  0.65879800
TotalDehydrotomatine                     -0.16555038 -0.170452131 -0.15777601
Tomatine                                 -0.13638091 -0.163532836 -0.41927007
TotalHydroxytomatine                      0.15203796  0.706002906 -0.41591986
TotalAcetoxytomatine                     -0.05462895 -0.326082234  0.41704857
DehydrolycoperosideFGdehydroesculeosideA -0.16278360  0.013643330 -0.06919125
TotalLycoperosideFGEsculeosideA          -0.09078436 -0.009476836 -0.02310538
TotalEsculeosideB                         0.02495982 -0.037371129  0.01529154
Total                                    -0.11066018 -0.170588385  0.05600981
                                                 PC7         PC8          PC9
Dehydrotomatidine                         0.13097525 -0.02201625 -0.012909093
Tomatidine                                0.03505366  0.05778857  0.054315300
TotalDehydrotomatine                      0.03480557 -0.61023340 -0.475709677
Tomatine                                 -0.09303946  0.40353582  0.403874861
TotalHydroxytomatine                     -0.04702814 -0.04023463  0.009165434
TotalAcetoxytomatine                     -0.01377758 -0.02258828  0.182475550
DehydrolycoperosideFGdehydroesculeosideA  0.61727735 -0.31823996  0.437114636
TotalLycoperosideFGEsculeosideA           0.10012665  0.42335087 -0.583833541
TotalEsculeosideB                        -0.76029219 -0.28461575  0.203734859
Total                                    -0.01570365  0.31194871 -0.025467058
                                                  PC10
Dehydrotomatidine                        -0.0001604947
Tomatidine                                0.0010655927
TotalDehydrotomatine                      0.0147128823
Tomatine                                  0.2559833151
TotalHydroxytomatine                      0.1268345182
TotalAcetoxytomatine                      0.5059522400
DehydrolycoperosideFGdehydroesculeosideA  0.0080094872
TotalLycoperosideFGEsculeosideA           0.3707973486
TotalEsculeosideB                         0.0226436777
Total                                    -0.7239562737

class(alkaloids_pca)

[1] "prcomp"

We can see that the resulting PCA object is a prcomp object, and is a list of 5 lists and vectors.

This includes:

sdev: the standard deviations (square roots of the eigenvalues of the covariance matrix) of the principal components
rotation: the PCs for the variables (i.e., the variable loadings)
x: the PCs for samples (i.e., the scores)
center: the centering used
scale: the scaling used

We can also look at the output of our PCA in a different way using the function summary().

summary(alkaloids_pca)

Importance of components:
                         PC1    PC2    PC3    PC4     PC5     PC6     PC7
Standard deviation     1.794 1.7319 1.2151 0.9904 0.77639 0.66953 0.43941
Proportion of Variance 0.322 0.2999 0.1477 0.0981 0.06028 0.04483 0.01931
Cumulative Proportion  0.322 0.6219 0.7696 0.8677 0.92796 0.97279 0.99210
                           PC8     PC9      PC10
Standard deviation     0.20413 0.19322 0.0001504
Proportion of Variance 0.00417 0.00373 0.0000000
Cumulative Proportion  0.99627 1.00000 1.0000000

We can convert this summary into something later usable by extraction the element importance from summary(alkaloids_pca) and converting it to a dataframe.

importance <- summary(alkaloids_pca)$importance |>
  as.data.frame()

knitr::kable(head(importance))

	PC1	PC2	PC3	PC4	PC5	PC6	PC7	PC8	PC9	PC10
Standard deviation	1.794414	1.731872	1.21514	0.9904494	0.7763915	0.6695314	0.4394143	0.2041301	0.1932182	0.0001504
Proportion of Variance	0.321990	0.299940	0.14766	0.0981000	0.0602800	0.0448300	0.0193100	0.0041700	0.0037300	0.0000000
Cumulative Proportion	0.321990	0.621930	0.76959	0.8676900	0.9279600	0.9727900	0.9921000	0.9962700	1.0000000	1.0000000

By looking at the summary we can see, for example, that the first two PCs explain 62.19% of variance.

We are going to go over making scree, scores and loadings plots using helper functions (here, they start fviz_() and come from the package factoextra, and manually via ggplot. The helper functions allow you look at each plot type simply. This is an important step because when you make your plots with ggplot, you want to be sure they look how they should.

Scree plot

A scree plot shows what percentage of total variance is explained by each principal component.

Using `fviz_eig()`

We can do this quickly using fviz_eig().

fviz_eig(alkaloids_pca)

You can actually do this very easily with base R plotting as well. If you weren’t planning to publish this type of plot, it might not be important it look beautiful, and then both of these options would be great and quick. Note though that the base R plot is plotting at a different scale.

plot(alkaloids_pca)

Manually

If you wanted to make a scree plot manually, you could by plotting using a wrangled version of the importance dataframe we made earlier.

importance_tidy <- importance |>
  rownames_to_column(var = "measure") |>
  pivot_longer(cols = PC1:PC10,
               names_to = "PC",
               values_to = "value")

importance_tidy |>
  filter(measure == "Proportion of Variance") |>
  ggplot(aes(x = PC, y  = value)) +
  geom_col()

Almost! PC10 is displaying right after PC1 because alphabetically, this is the order. Let’s fix it.

# create a vector with the order we want
my_order <- colnames(importance)

# relevel according to my_order
importance_tidy$PC <- factor(importance_tidy$PC, levels = my_order)

# check to see if it worked
levels(importance_tidy$PC)

 [1] "PC1"  "PC2"  "PC3"  "PC4"  "PC5"  "PC6"  "PC7"  "PC8"  "PC9"  "PC10"

Let’s plot again.

importance_tidy |>
  filter(measure == "Proportion of Variance") |>
  ggplot(aes(x = PC, y  = value)) +
  geom_col()

Success!

If we want to tighten up this plot we can.

importance_tidy |>
  filter(measure == "Proportion of Variance") |>
  ggplot(aes(x = PC, y  = value)) +
  geom_col(alpha = 0.1, color = "black") +
  scale_y_continuous(labels = scales::percent) +
  theme_minimal() +
  labs(x = "Principal component",
       y = "Percent variance explained",
       title = "Scree plot of 10 alkaloids analyzed across 107 tomato accessions")

This is a perfectly ready scree plot for the supplementary materials of a publication.

Scores plot

When people talk about PCA plots, what they most often mean is PCA scores plots. Here, each point represents a sample, and we are plotting their coordinates typically for the first 2 PCs. Sometimes people make 3D PCA plots with the first 3 PCs but I think these are not easy to look in 2D and I wouldn’t recommend you to put them in your papers.

Using `fviz_pca_ind()`

We can also look at a scores plot using fviz_pca_ind() where ind means individuals. Here, each point is a sample.

fviz_pca_ind(alkaloids_pca)

Because our alkaloids_pca doesn’t have any meta-data, this is a hard to interpret plot, where each number indicates the rownumber of that sample. Making the scores plot this way is useful because it shows us the shape of the plot which we can use to confirm that we have made a ggplot that looks like its been created correctly.

Manually

We want to plot the scores, which are in provided in alkaloids_pca$x.

We can convert the list into a dataframe of scores values by using as.data.frame(). Then we can bind back our relevant metadata so they’re all together. Note, to use bind_cols() both datasets need to be in the same order. In this case they are so we are good.

# create a df of alkaloids_pca$x
scores_raw <- as.data.frame(alkaloids_pca$x)

# bind meta-data
scores <- bind_cols(alkaloid_blups |> select(Genotype, Plot_Source, Species), # metadata
                    scores_raw)

# how does our new df look?
scores[1:6, 1:6]

# A tibble: 6 × 6
  Genotype     Plot_Source Species      PC1    PC2     PC3
  <chr>        <chr>       <chr>      <dbl>  <dbl>   <dbl>
1 CULBPT_05_11 2K9-8584    Processing -1.51 -1.17  0.00632
2 CULBPT_05_15 2K9-8622    Processing -1.50 -0.915 0.0649
3 CULBPT_05_22 2K17-7708-1 Processing -1.55 -0.942 0.0658
4 CULBPT04_1   2K9-8566    Processing -1.55 -0.906 0.0817
5 E6203        2K9-8600    Processing -1.52 -0.940 0.0436
6 F06-2041     2K16-9843   Processing -1.58 -0.934 0.0677

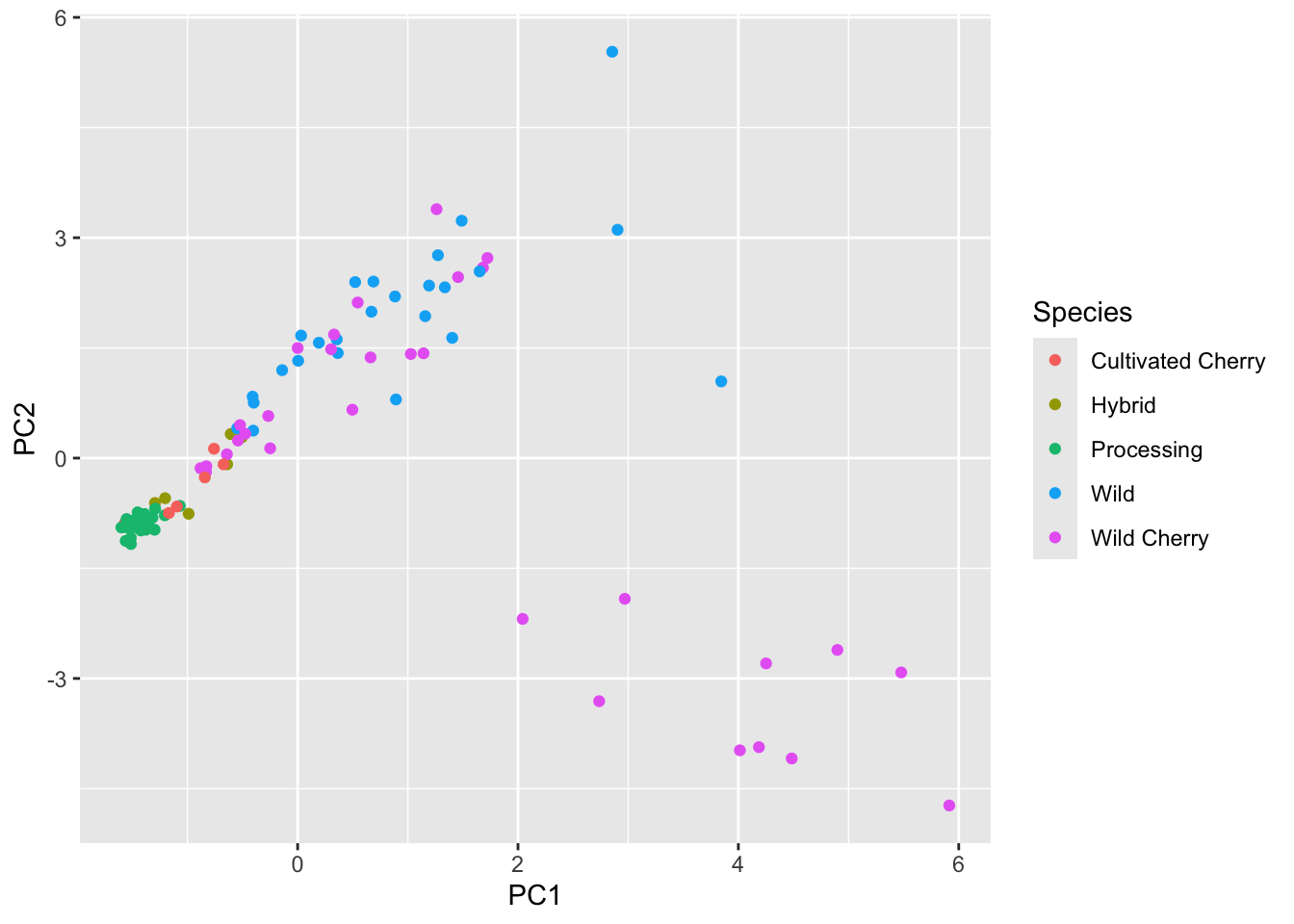

Now we can plot.

scores |>
  ggplot(aes(x = PC1, y = PC2, color = Species)) +
  geom_point()

Our shapes are looking the same, this is good. Let’s pretty up our plot.

First let’s wrangle.

# create objects indicating percent variance explained by PC1 and PC2
PC1_percent <- round((importance[2,1])*100, # index 2nd row, 1st column, times 100
                     1) # round to 1 decimal
PC2_percent <- round((importance[2,2])*100, 1)

# make Species a factor and set levels
# from least wild to most wild
# we did this back in data distributions.
scores$Species <- factor(scores$Species,
                         levels = c("Processing",
                                    "Cultivated Cherry",
                                    "Hybrid",
                                    "Wild Cherry",
                                    "Wild"))

Then we can plot

# plot
(scores_plot <- scores |>
  ggplot(aes(x = PC1, y = PC2, fill = Species)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point(shape = 21, color = "black", size = 2.5, alpha = 0.7) +
   # sequential color selecting hex codes from YlOrRd color by wildness
  scale_fill_manual(values = c("#ffffcc", "#fed976", "#fd8d3c", "#e31a1c", "#800026")) +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Scores Plot of 10 Alkaloids Present in 107 Tomato Accessions"))

This looks nice.

Loadings plot

Using `fviz_pca_var()`

We can also look at a loadings plot using fviz_pca_var() where var means variables. Here, each point is a variable.

fviz_pca_var(alkaloids_pca)

Manually

We can also make a more customized loadings plot manually using ggplot and using the dataframe alkaloids_pca$rotation.

# grab raw loadings, without any metadata
loadings_raw <- as.data.frame(alkaloids_pca$rotation)

loadings <- loadings_raw |>
  rownames_to_column(var = "alkaloid")

We can then plot with ggplot like normal.

loadings |>
  ggplot(aes(x = PC1, y = PC2, label = alkaloid)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point() +
  geom_text() +
  scale_fill_brewer() +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Loadings Plot")

We have two problems with this plot.

The names are abbreviated and not how we want them to appear
The label names are on top of the points/each other

We can fix both of these problems.

We can create a vector of the labels as we want them to appear, as we have done previously.

alkaloid_labels <- c("Dehydrotomatidine",
                     "Tomatidine",
                     "Dehydrotomatine",
                     "Alpha-Tomatine",
                     "Hydroxytomatine",
                     "Acetoxytomatine",
                     "Dehydrlycoperoside F, G, \nor Dehydroescueloside A",
                     "Lycoperoside F, G, \nor Escueloside A",
                     "Escueloside B",
                     "Total Steroidal Alkaloids")

Then we can re-plot with these labels.

loadings |>
  ggplot(aes(x = PC1, y = PC2, label = alkaloid_labels)) +
  geom_point() +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_text() +
  scale_fill_brewer() +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Loadings Plot")

Ok the label names are better but they’re still smushed. The package ggrepel has some good functions to help us. You can try using geom_text_repel() and geom_label_repel().

A cartoon that says ggrepel, wonderfully repulsive labels, and has some fuzzy monsters and a sewing theme making a plot with buttons, and labels that are repelled away indicating what color they are. There is a ball of yarn indicating segments, and patches indicating labels. — Artwork by Allison Horst

With geom_text_repel()

library(ggrepel)

(loadings_plot <- loadings |>
  ggplot(aes(x = PC1, y = PC2, label = alkaloid_labels)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point() +
  geom_text_repel() +
  scale_fill_brewer() +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Loadings Plot using geom_text_repel()"))

With geom_label_repel()

loadings |>
  ggplot(aes(x = PC1, y = PC2, label = alkaloid_labels)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point() +
  geom_label_repel() +
  scale_fill_brewer() +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Loadings Plot using geom_label_repel()")

`patchwork`

You can pop these two plots side by side easing using the package patchwork.

Fuzzy cartoon monsters in white gloves and uniforms hanging multiple plots together on a wall, with an artist monster wearing a beret and smock directing them to the correct orientation. There is a blueprint plan on the wall showing how the plots should be arranged. Stylized title font reads “patchwork - combine & arrange your ggplots!” — Artwork by Allison Horst

library(patchwork)

scores_plot + loadings_plot

Biplot

Using `fviz_pca()`.

You can make a biplot quickly with fviz_pca(). Note, fviz_pca_biplot() and fviz_pca() are the same.

fviz_pca(alkaloids_pca)

Instead of making this plot manually, let’s go through how to alter the existing plot made with fviz_pca(). We can do this because factoextra creates ggplot objects. To start off, we need to be using a dataframe that includes our metadata.

fviz_pca(alkaloids_pca, # pca object
         label = "var",
         repel = TRUE,
         geom.var = "text") +
  geom_point(aes(fill = alkaloid_blups$Species), shape = 21) +
  scale_fill_brewer(palette = "Set2") +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Biplot Plot of 10 Alkaloids Present in 107 Tomato Accessions",
       fill = "Species")

This is almost what we want - except we have only the abbreviated names for the alkaloids. Since in a biplot, we are really plotting two different sets of data (the scores and the loadings)there isn’t the ability to use labeller or similar with fviz_pca for the loadings only. There is a workaround though, we can go into our PCA object, change the rownames of alkaloids_pca$rotation to be our longer labels, and that should inherit to our new plot.

# save as a new df
alkaloids_pca_labelled <- alkaloids_pca

# assign alkaloid_labels to rownames
rownames(alkaloids_pca_labelled$rotation) <- alkaloid_labels

# plot
fviz_pca(alkaloids_pca_labelled, # pca object
         label = "var",
         repel = TRUE,
         geom.var = c("text", "point"),
         col.var = "black") +
  geom_point(aes(fill = alkaloid_blups$Species), shape = 21) +
  scale_fill_brewer(palette = "Set2") +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Biplot Plot of 10 Alkaloids Present in 107 Tomato Accessions",
       fill = "Species")

Manually

We can’t add the loadings right on top of the scores because they are on different scales.

# plot
scores |>
  ggplot() +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point(aes(x = PC1, y = PC2, fill = Species), # from piped data
             shape = 21, color = "black", size = 2.5, alpha = 0.7) +
  geom_point(data = loadings,
             aes(x = PC1, y = PC2)) + # set locally
   # sequential color selecting hex codes from YlOrRd color by wildness
  scale_fill_manual(values = c("#ffffcc", "#fed976", "#fd8d3c", "#e31a1c", "#800026")) +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Scores Plot of 10 Alkaloids Present in 107 Tomato Accessions")

The issue here is that the scores and loadings are on different scales - let’s make them on the same scale.

I can write a quick function to allow normalization.

normalize <- function(x) return((x - min(x))/(max(x) - min(x)))

Then I can nornalize the scores using the scale function, since the loadings are already normalized.

scores_normalized <- scores |>
  mutate(PC1_norm = scale(normalize(PC1), center = TRUE, scale = FALSE)) |>
  mutate(PC2_norm = scale(normalize(PC2), center = TRUE, scale = FALSE)) |>
  select(Genotype, Plot_Source, Species,
         PC1_norm, PC2_norm, everything()) # pick metadata and reorder

How did it go? PC1_norm and PC2_norm should all now be between -1 and 1

# look at first six rows
head(scores_normalized)

# A tibble: 6 × 15
  Genotype    Plot_Source Species PC1_norm[,1] PC2_norm[,1]   PC1    PC2     PC3
  <chr>       <chr>       <fct>          <dbl>        <dbl> <dbl>  <dbl>   <dbl>
1 CULBPT_05_… 2K9-8584    Proces…       -0.201      -0.114  -1.51 -1.17  0.00632
2 CULBPT_05_… 2K9-8622    Proces…       -0.200      -0.0892 -1.50 -0.915 0.0649
3 CULBPT_05_… 2K17-7708-1 Proces…       -0.206      -0.0918 -1.55 -0.942 0.0658
4 CULBPT04_1  2K9-8566    Proces…       -0.206      -0.0883 -1.55 -0.906 0.0817
5 E6203       2K9-8600    Proces…       -0.203      -0.0916 -1.52 -0.940 0.0436
6 F06-2041    2K16-9843   Proces…       -0.210      -0.0910 -1.58 -0.934 0.0677
# ℹ 7 more variables: PC4 <dbl>, PC5 <dbl>, PC6 <dbl>, PC7 <dbl>, PC8 <dbl>,
#   PC9 <dbl>, PC10 <dbl>

# range of PC1
range(scores_normalized$PC1_norm)

[1] -0.2128768  0.7871232

# range of PC2
range(scores_normalized$PC2_norm)

[1] -0.4608813  0.5391187

We can set the scores_normalized data for the overall plot and add the loadings within another geom_point().

scores_normalized |>
  ggplot() +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point(aes(x = PC1_norm, y = PC2_norm, fill = Species), # scores
             shape = 21, color = "black", size = 2.5, alpha = 0.7) +
  geom_point(data = loadings, # loadings points
             aes(x = PC1, y = PC2), color = "gray") +
  geom_label_repel(data = loadings, # loadings labels
                   aes(x = PC1, y = PC2, label = alkaloid_labels),
                   size = 2.5, # make labels smaller
                   fill = alpha(c("white"),0.5)) + # make label background transparent
  scale_fill_manual(values = c("#ffffcc", "#fed976", "#fd8d3c", "#e31a1c", "#800026")) +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Biplot of 10 Alkaloids Present in 107 Tomato Accessions",
       subtitle = "Samples are colored points and loadings are grey with labels")

Voila.

Introduction

Read in data

Light wrangling

Run PCA

Scree plot

Using fviz_eig()

Manually

Scores plot

Using fviz_pca_ind()

Manually

Loadings plot

Using fviz_pca_var()

Manually

patchwork

Biplot

Using fviz_pca().

Manually

Useful resources

Using `fviz_eig()`

Using `fviz_pca_ind()`

Using `fviz_pca_var()`

`patchwork`

Using `fviz_pca()`.
