Visualizing Correlations Recitation Solutions

Week 8

Author

Jessica Cooperstone

Introduction

We will be using some data collection from the National Health and Nutrition Examination Survey which collects data to assess the health and nutritional status of people in the United States. The data from 2009-2012 has been compiled in an R package called NHANES.

# install.packages("NHANES")
library(NHANES)

# functionality and correlation packages
library(tidyverse)
library(corrplot)
library(ggcorrplot)
library(GGally)
library(Hmisc)
library(reshape2)
library(scales)

knitr::kable(head(NHANES))

ID	SurveyYr	Gender	Age	AgeDecade	AgeMonths	Race1	Race3	Education	MaritalStatus	HHIncome	HHIncomeMid	Poverty	HomeRooms	HomeOwn	Work	Weight	Length	HeadCirc	Height	BMI	BMICatUnder20yrs	BMI_WHO	Pulse	BPSysAve	BPDiaAve	BPSys1	BPDia1	BPSys2	BPDia2	BPSys3	BPDia3	Testosterone	DirectChol	TotChol	UrineVol1	UrineFlow1	UrineVol2	UrineFlow2	Diabetes	DiabetesAge	HealthGen	DaysPhysHlthBad	DaysMentHlthBad	LittleInterest	Depressed	nPregnancies	nBabies	Age1stBaby	SleepHrsNight	SleepTrouble	PhysActive	PhysActiveDays	TVHrsDay	CompHrsDay	TVHrsDayChild	CompHrsDayChild	Alcohol12PlusYr	AlcoholDay	AlcoholYear	SmokeNow	Smoke100	Smoke100n	SmokeAge	Marijuana	AgeFirstMarij	RegularMarij	AgeRegMarij	HardDrugs	SexEver	SexAge	SexNumPartnLife	SexNumPartYear	SameSex	SexOrientation	PregnantNow
51624	2009_10	male	34	30-39	409	White	NA	High School	Married	25000-34999	30000	1.36	6	Own	NotWorking	87.4	NA	NA	164.7	32.22	NA	30.0_plus	70	113	85	114	88	114	88	112	82	NA	1.29	3.49	352	NA	NA	NA	No	NA	Good	0	15	Most	Several	NA	NA	NA	4	Yes	No	NA	NA	NA	NA	NA	Yes	NA	0	No	Yes	Smoker	18	Yes	17	No	NA	Yes	Yes	16	8	1	No	Heterosexual	NA
51624	2009_10	male	34	30-39	409	White	NA	High School	Married	25000-34999	30000	1.36	6	Own	NotWorking	87.4	NA	NA	164.7	32.22	NA	30.0_plus	70	113	85	114	88	114	88	112	82	NA	1.29	3.49	352	NA	NA	NA	No	NA	Good	0	15	Most	Several	NA	NA	NA	4	Yes	No	NA	NA	NA	NA	NA	Yes	NA	0	No	Yes	Smoker	18	Yes	17	No	NA	Yes	Yes	16	8	1	No	Heterosexual	NA
51624	2009_10	male	34	30-39	409	White	NA	High School	Married	25000-34999	30000	1.36	6	Own	NotWorking	87.4	NA	NA	164.7	32.22	NA	30.0_plus	70	113	85	114	88	114	88	112	82	NA	1.29	3.49	352	NA	NA	NA	No	NA	Good	0	15	Most	Several	NA	NA	NA	4	Yes	No	NA	NA	NA	NA	NA	Yes	NA	0	No	Yes	Smoker	18	Yes	17	No	NA	Yes	Yes	16	8	1	No	Heterosexual	NA
51625	2009_10	male	4	0-9	49	Other	NA	NA	NA	20000-24999	22500	1.07	9	Own	NA	17.0	NA	NA	105.4	15.30	NA	12.0_18.5	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	No	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	4	1	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA
51630	2009_10	female	49	40-49	596	White	NA	Some College	LivePartner	35000-44999	40000	1.91	5	Rent	NotWorking	86.7	NA	NA	168.4	30.57	NA	30.0_plus	86	112	75	118	82	108	74	116	76	NA	1.16	6.70	77	0.094	NA	NA	No	NA	Good	0	10	Several	Several	2	2	27	8	Yes	No	NA	NA	NA	NA	NA	Yes	2	20	Yes	Yes	Smoker	38	Yes	18	No	NA	Yes	Yes	12	10	1	Yes	Heterosexual	NA
51638	2009_10	male	9	0-9	115	White	NA	NA	NA	75000-99999	87500	1.84	6	Rent	NA	29.8	NA	NA	133.1	16.82	NA	12.0_18.5	82	86	47	84	50	84	50	88	44	NA	1.34	4.86	123	1.538	NA	NA	No	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	5	0	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA	NA

If you wanted to make a correlation plot for all variables below.

NHANES_trimmed <- NHANES %>%
  select(Age, BMI, Pulse, starts_with("BP"), TotChol) %>%
  drop_na()

NHANES_cor <- cor(NHANES_trimmed)

1. How correlated are different measures of blood pressure?

In the NHANES dataset, there are 3 measurements for each systolic (the first/top number) and diastolic blood (the second/bottom number) pressure. How reproducible is each type of blood pressure measurement over the 3 samplings? Make visualizations to convey your findings.

Wrangling, creating two dataframes

Includes the 4 measures for systolic BP BPSysAve, BPSys1, BPSys2, BPSys3
Includes the 4 measures for diastolic BP BPDiaAve, BPDia1, BPDia2, BPDia3

# create df with all of the BP measurements
# remove missing values
NHANES_BP <- NHANES %>%
  select(starts_with("BP")) %>%
  drop_na()

# create df with all systolic data
NHANES_systolic <- NHANES_BP %>%
  select(contains("Sys"))

# create df with all diastolic data
NHANES_diastolic <- NHANES_BP %>%
  select(contains("Dia"))

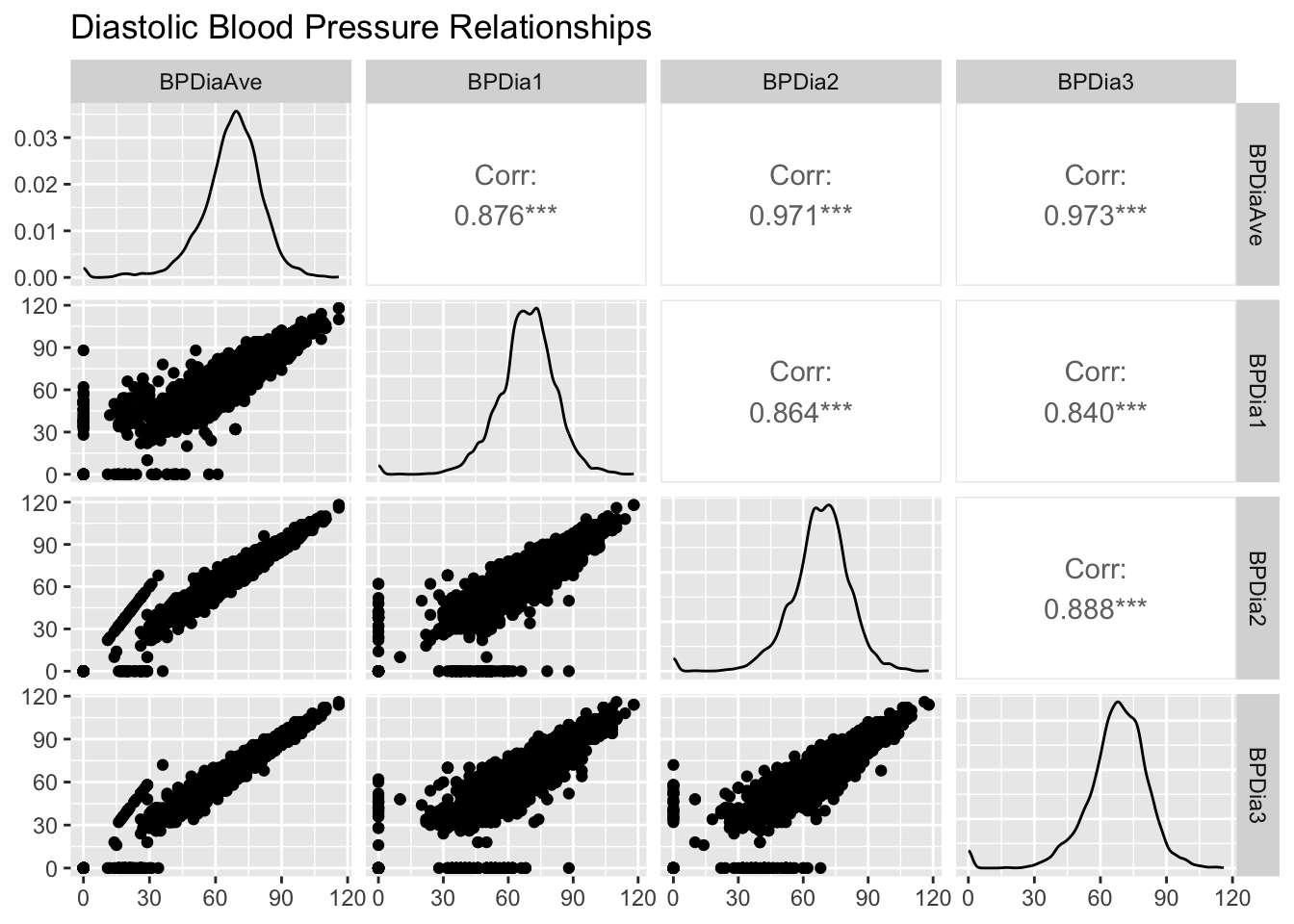

Looking at relationships using scatteplots

We can look quickly at the relationship betwen all the diastolic BP measurements, and all of the systolic BP measurements using ggpairs().

NHANES_diastolic %>%
  ggpairs(title = "Diastolic Blood Pressure Relationships")

From the diastolic data, we can see some values that are zero. Those are biologically implausible so I am going to elect to remove those observations.

NHANES_diastolic_no0 <- NHANES_diastolic %>%
  filter(BPDiaAve > 0 & BPDia1 > 0 & BPDia2 > 0 & BPDia3 > 0)

# how many observations are there?
nrow(NHANES_diastolic)

[1] 7971

# how many obesrvations after removing zero diastolic
nrow(NHANES_diastolic_no0)

[1] 7803

# how many observations did we remove?
nrow(NHANES_diastolic) - nrow(NHANES_diastolic_no0)

[1] 168

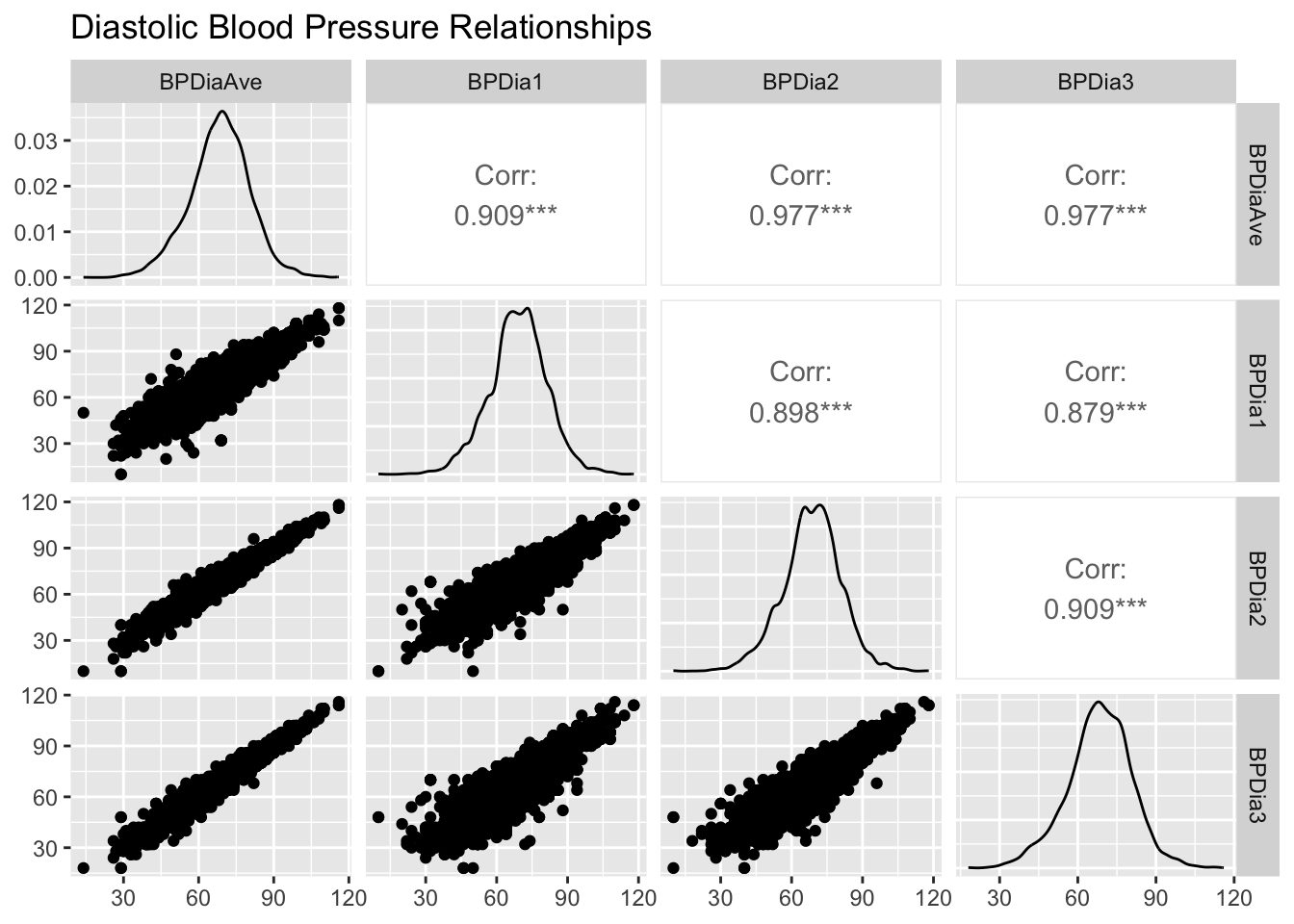

Try again now that we’ve removed diastolic BP values that are zero.

NHANES_diastolic_no0 %>%
  ggpairs(title = "Diastolic Blood Pressure Relationships")

This looks better.

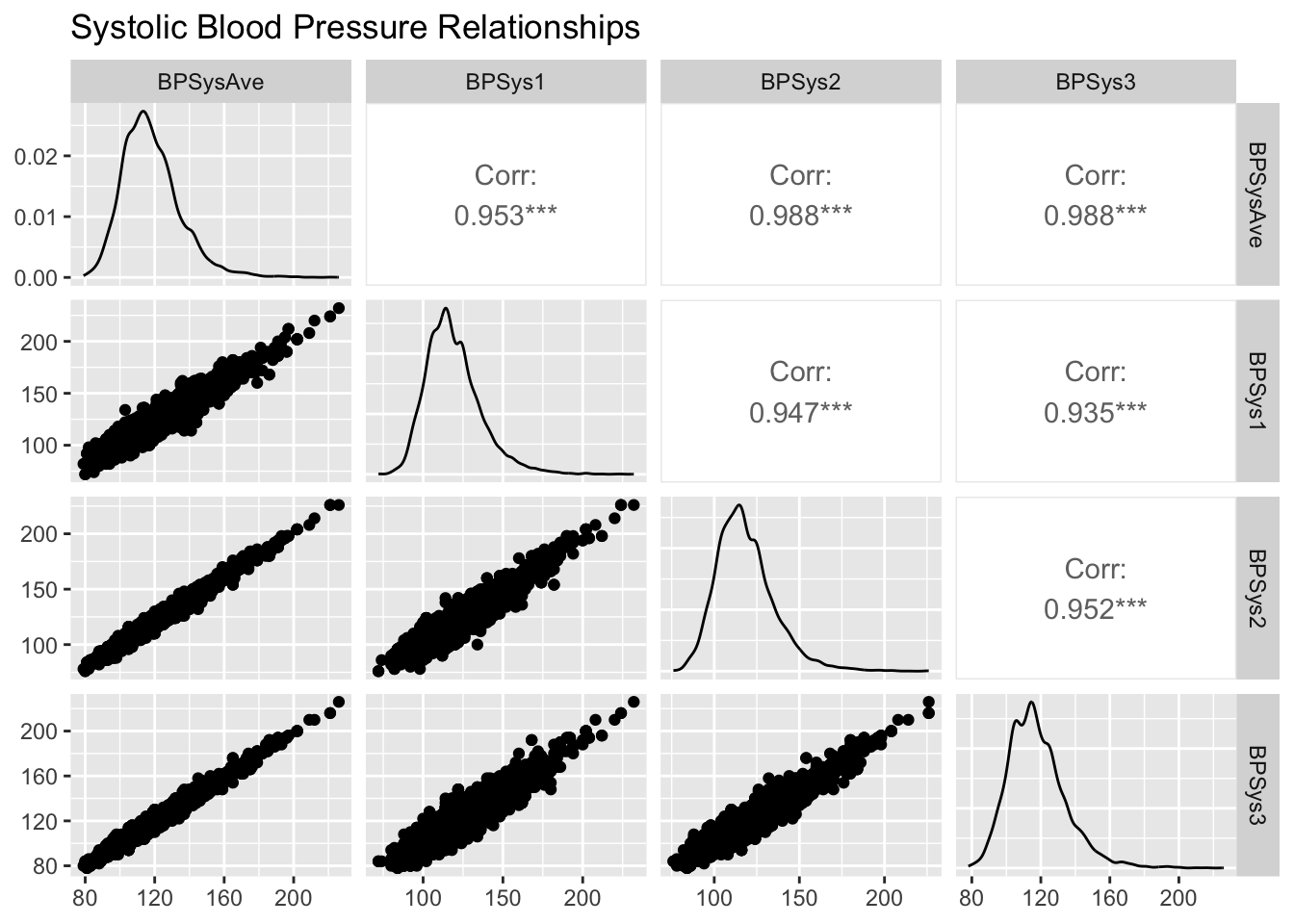

NHANES_systolic %>%
  ggpairs(title = "Systolic Blood Pressure Relationships")

Run correlation analysis with `cor()` and `rcorr()`

# run systolic correlation analysis
NHANES_sys_cor <- cor(NHANES_systolic)

# could also use rcorr()
NHANES_sys_rcorr <- rcorr(as.matrix(NHANES_systolic))

# run diastolic correlation analysis
NHANES_dia_cor <- cor(NHANES_diastolic_no0)

# could also use rcorr()
NHANES_dia_rcorr <- rcorr(as.matrix(NHANES_diastolic_no0))

Prepare to plot with `corrplot()`

# create a vector of the systolic names for labeling
sys_labels <- c("Systolic BP, Average",
                "Systolic BP 1",
                "Systolic BP 2",
                "Systolic BP 3")

dia_labels <- c("Diastolic BP, Average",
                "Diastolic BP 1",
                "Diastolic BP 2",
                "Diastolic BP 3")

# change row and column names of the correlation matrix
# so they are how we want them to be plotted
colnames(NHANES_sys_rcorr$r) <- sys_labels
rownames(NHANES_sys_rcorr$r) <- sys_labels
colnames(NHANES_dia_rcorr$r) <- dia_labels
rownames(NHANES_dia_rcorr$r) <- dia_labels

# change row and column names of the pvalue matrix
# so they are how we want them to be plotted
colnames(NHANES_sys_rcorr$P) <- sys_labels
rownames(NHANES_sys_rcorr$P) <- sys_labels
colnames(NHANES_dia_rcorr$P) <- dia_labels
rownames(NHANES_dia_rcorr$P) <- dia_labels

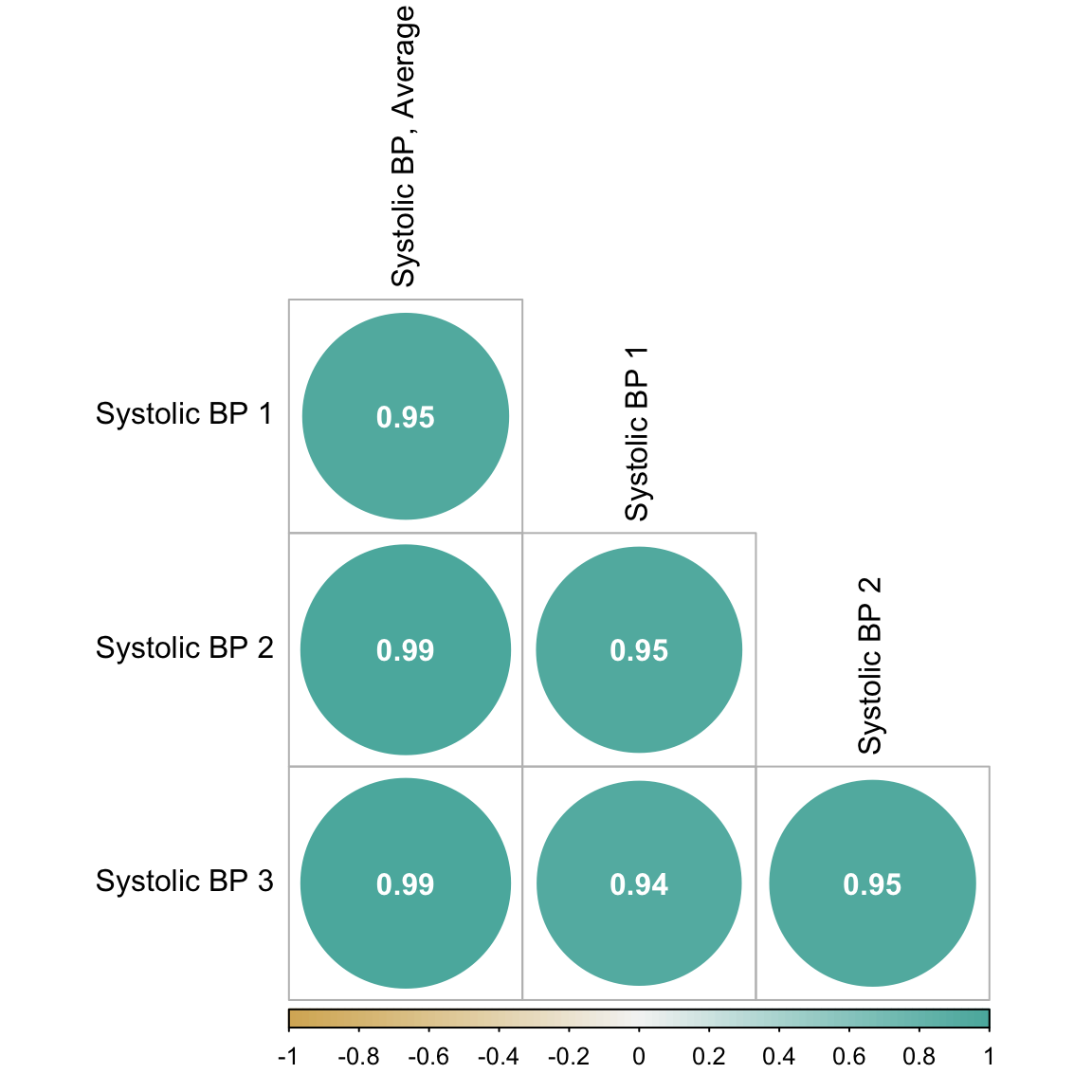

Plot with corrplot().

corrplot(NHANES_sys_rcorr$r, # the correlation matrix
         type = "lower", # lower triangle
         tl.col = "black", # axis labels are black
         p.mat  = NHANES_sys_rcorr$P, # pvalue matrix
         sig.level = 0.05, # how sig does a cor need to be to be included
         insig = "blank", # do not display insignificant correlations
         addCoef.col = "white", # display correlations in black
         diag = FALSE, # don't show the diagonal (because this is all 1)
         number.cex = 1.0, # size of correlation font
         col = colorRampPalette(c("#d8b365", "#f5f5f5", "#5ab4ac"))(100)) # change colors to be colorblind friendly

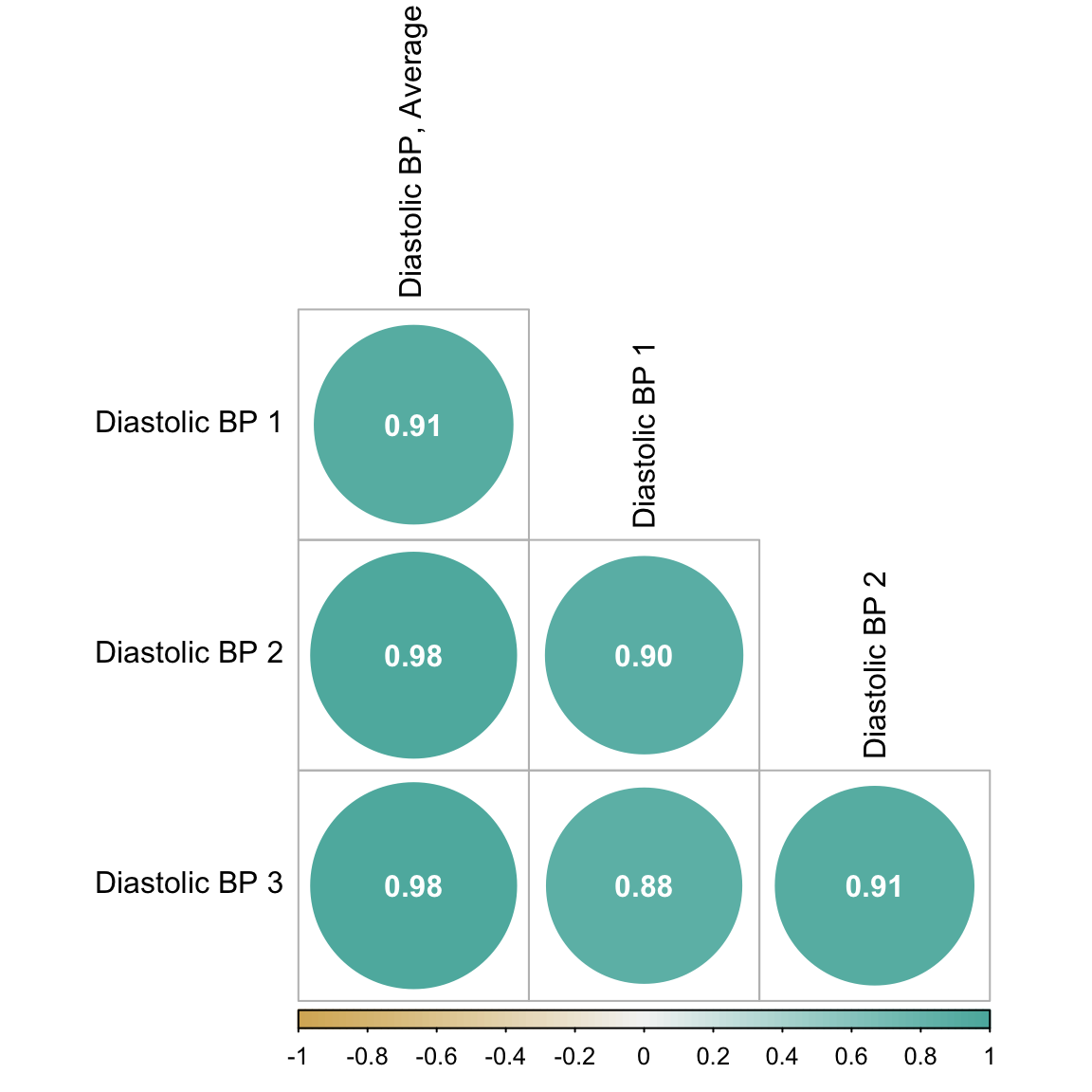

corrplot(NHANES_dia_rcorr$r, # the correlation matrix
         type = "lower", # lower triangle
         tl.col = "black", # axis labels are black
         p.mat  = NHANES_dia_rcorr$P, # pvalue matrix
         sig.level = 0.05, # how sig does a cor need to be to be included
         insig = "blank", # do not display insignificant correlations
         addCoef.col = "white", # display correlations in black
         diag = FALSE, # don't show the diagonal (because this is all 1)
         number.cex = 1.0, # size of correlation font
         col = colorRampPalette(c("#d8b365", "#f5f5f5", "#5ab4ac"))(100)) # change colors to be colorblind friendly

Plot with `ggcorrplot()`

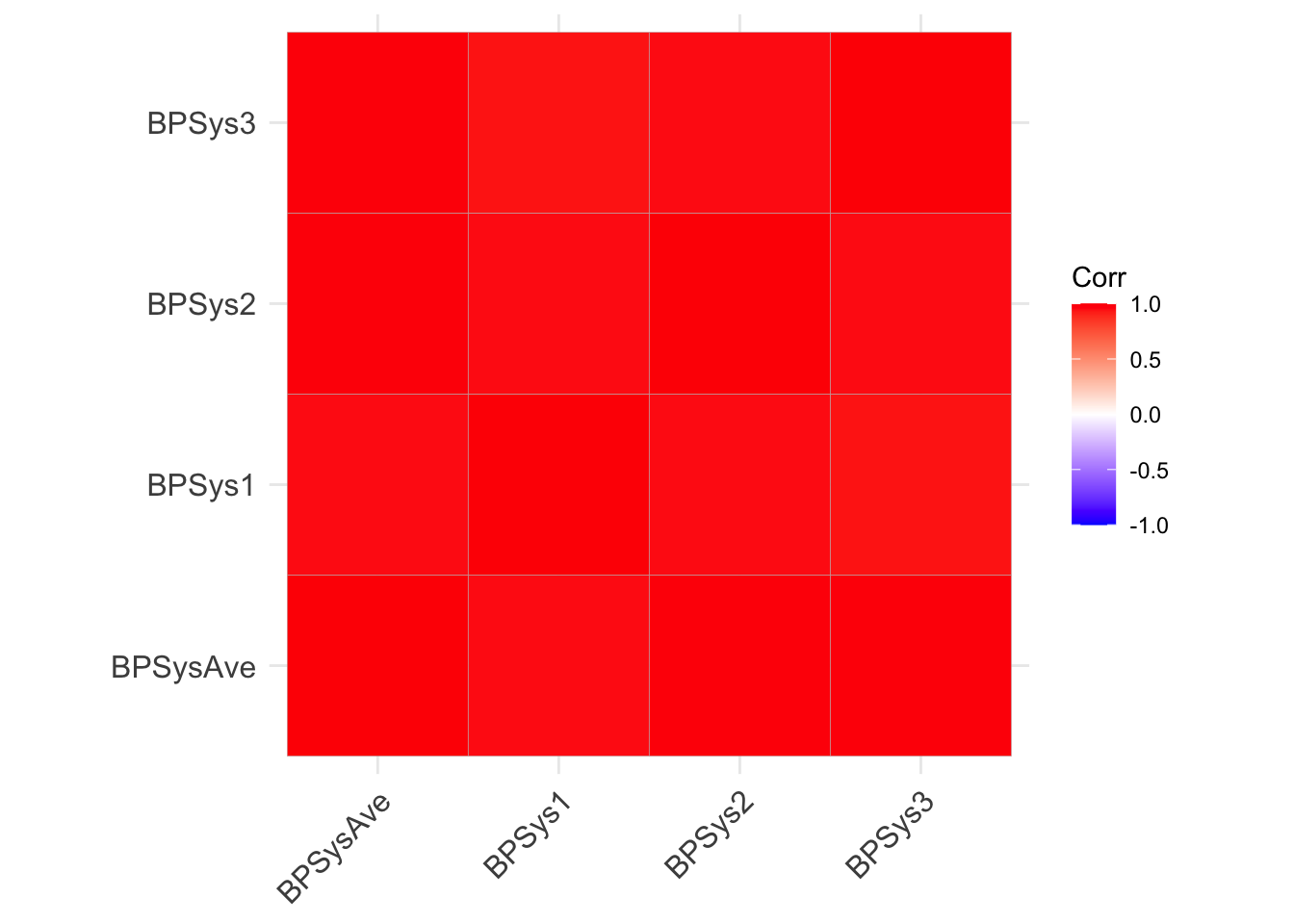

ggcorrplot(NHANES_sys_cor)

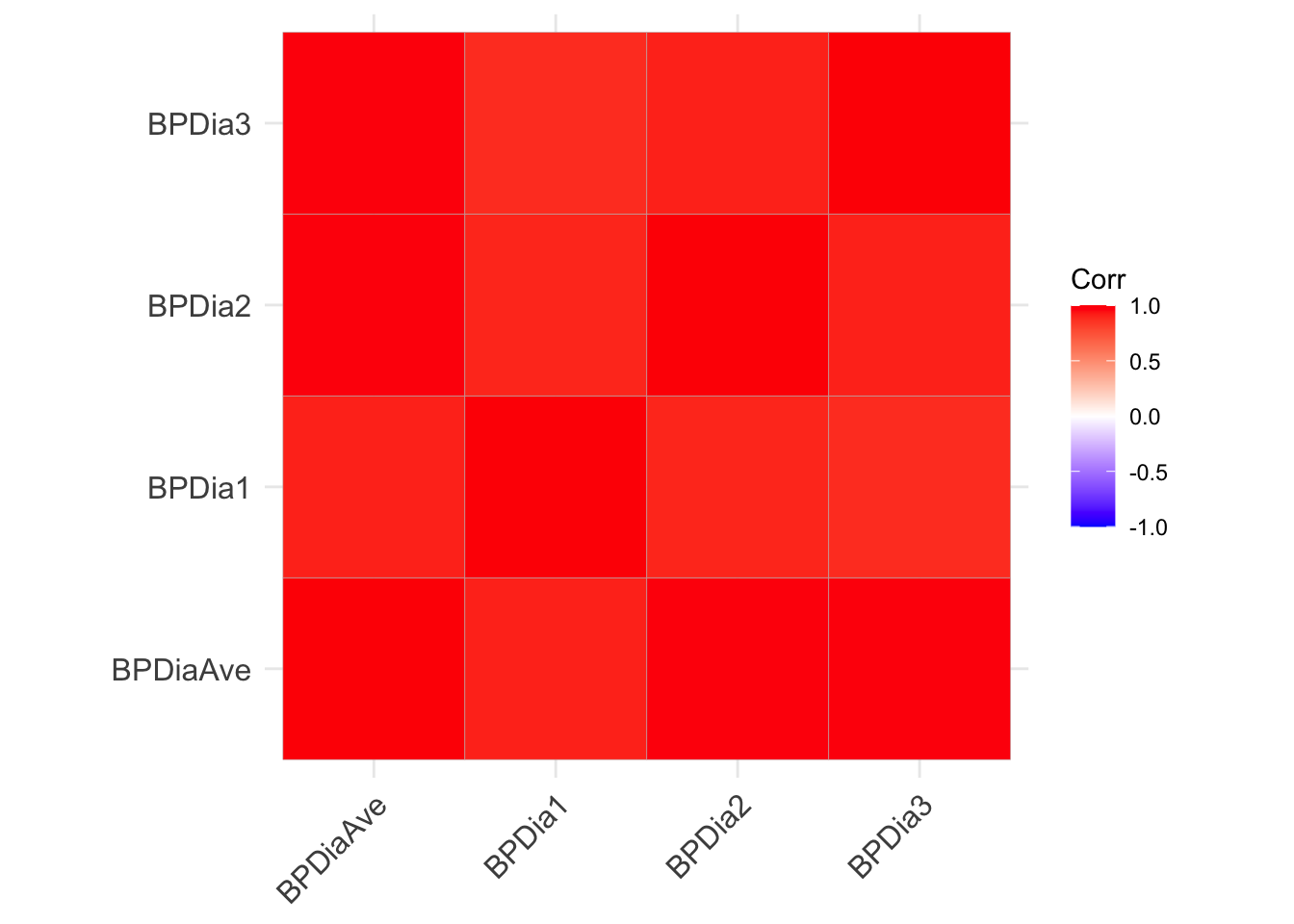

ggcorrplot(NHANES_dia_cor)

All are so highly correlated just looks red.

Can try adjusting the scale.

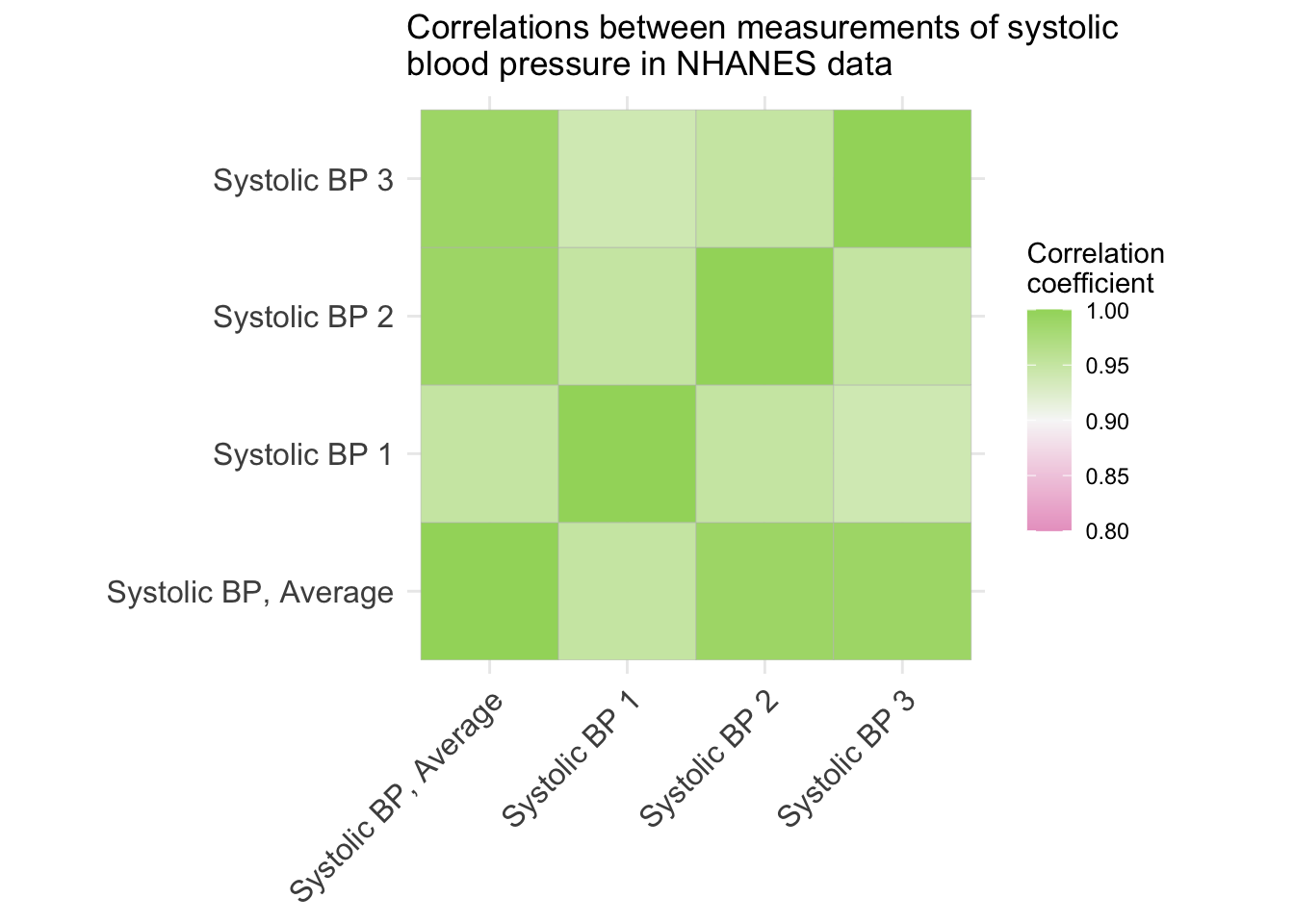

ggcorrplot(NHANES_sys_cor) +
  scale_fill_gradient2(limit = c(0.8,1), # set limits for corr range
                       low = "#e9a3c9", mid = "#f7f7f7", high =  "#a1d76a", # pick colors
                       midpoint = 0.9) + # set midpoint
  scale_x_discrete(labels = sys_labels) + # change x-axis labels
  scale_y_discrete(labels = sys_labels) + # change y-axis labels
  labs(fill = "Correlation \ncoefficient",
       title = "Correlations between measurements of systolic \nblood pressure in NHANES data")

Scale for fill is already present.
Adding another scale for fill, which will replace the existing scale.

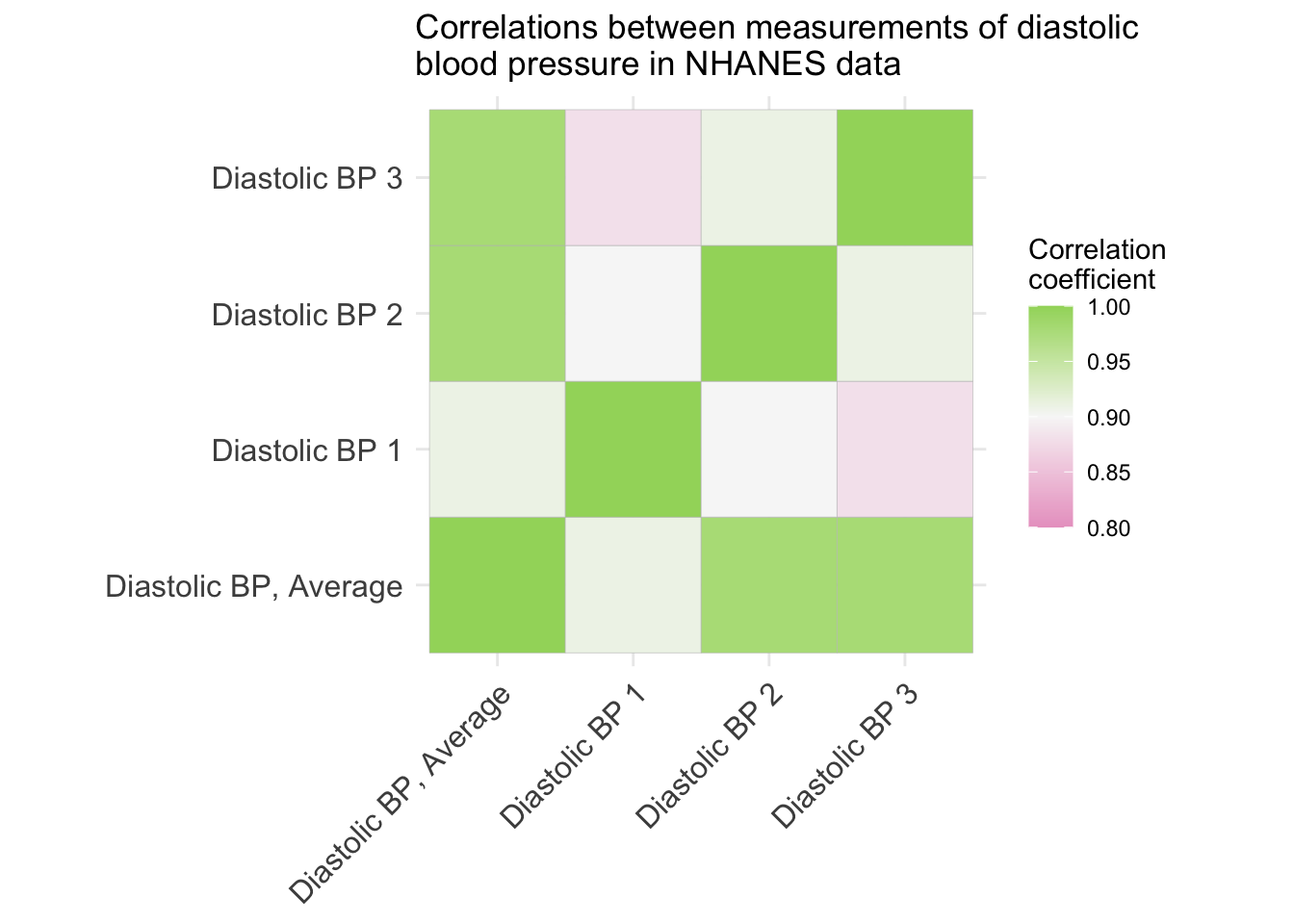

ggcorrplot(NHANES_dia_cor) +
  scale_fill_gradient2(limit = c(0.8,1), # set limits for corr range
                       low = "#e9a3c9", mid = "#f7f7f7", high =  "#a1d76a", # pick colors
                       midpoint = 0.9) + # set midpoint
  scale_x_discrete(labels = dia_labels) + # change x-axis labels
  scale_y_discrete(labels = dia_labels) + # change y-axis labels
  labs(fill = "Correlation \ncoefficient",
       title = "Correlations between measurements of diastolic \nblood pressure in NHANES data")

Scale for fill is already present.
Adding another scale for fill, which will replace the existing scale.

Prepare to plot with `melt()` and `ggplot()`

Create a lower triangle object to plot.

# "save as"
sys_lower <- NHANES_sys_cor
dia_lower <- NHANES_dia_cor

# use function upper.tri() and set the upper triangle all to NA
# then we can keep only the lower triangle
sys_lower[upper.tri(sys_lower)] <- NA
dia_lower[upper.tri(dia_lower)] <- NA

# melt to go back to long format
melted_sys_lower <- melt(sys_lower, na.rm = TRUE)
melted_dia_lower <- melt(dia_lower, na.rm = TRUE)

# did it work?
head(melted_sys_lower)

      Var1     Var2     value
1 BPSysAve BPSysAve 1.0000000
2   BPSys1 BPSysAve 0.9526899
3   BPSys2 BPSysAve 0.9881045
4   BPSys3 BPSysAve 0.9876269
6   BPSys1   BPSys1 1.0000000
7   BPSys2   BPSys1 0.9468706

head(melted_dia_lower)

      Var1     Var2     value
1 BPDiaAve BPDiaAve 1.0000000
2   BPDia1 BPDiaAve 0.9091983
3   BPDia2 BPDiaAve 0.9769738
4   BPDia3 BPDiaAve 0.9770299
6   BPDia1   BPDia1 1.0000000
7   BPDia2   BPDia1 0.8979354

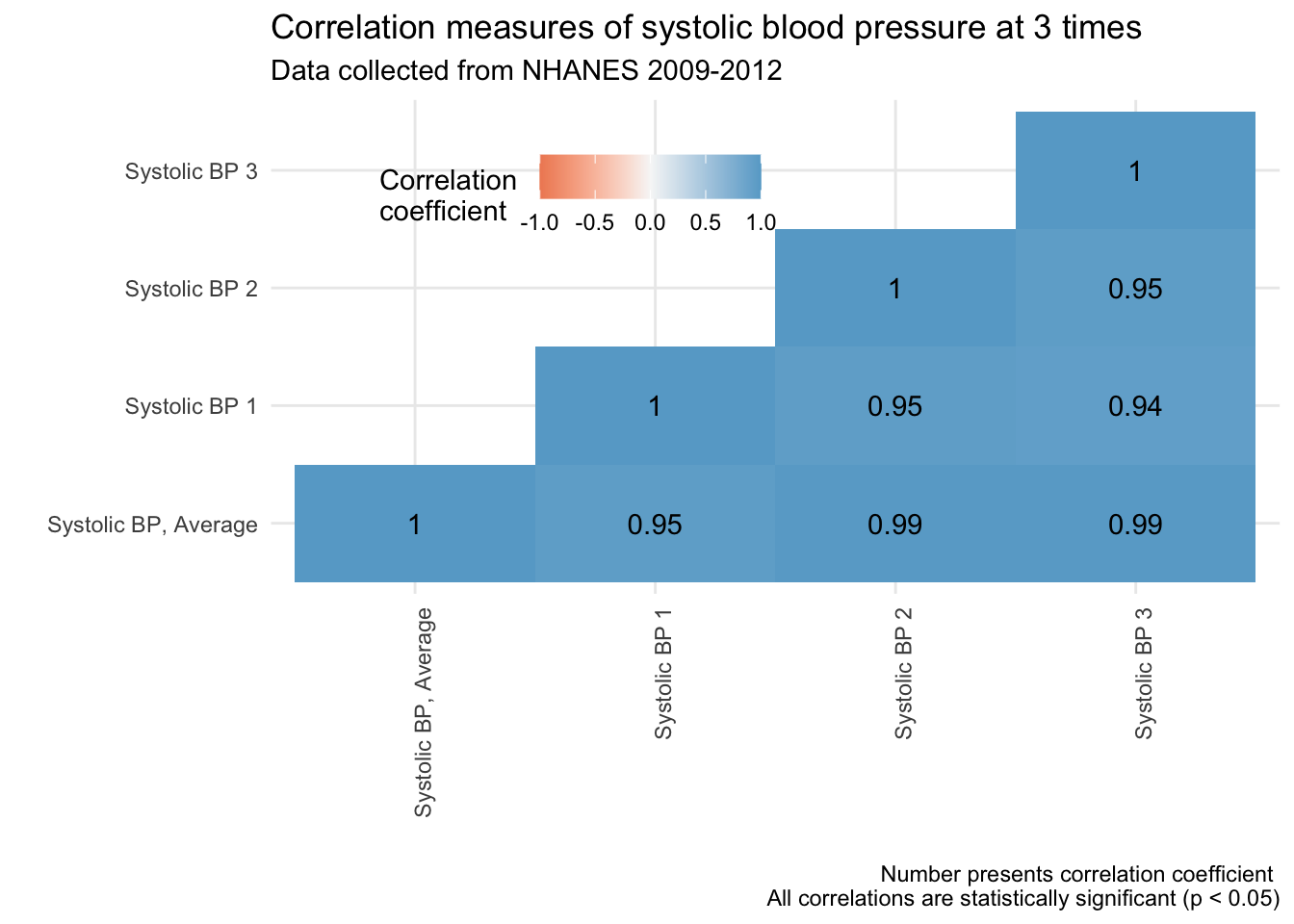

Plot systolic

# create a vector of the systolic names for labeling
sys_labels <- c("Systolic BP, Average",
                "Systolic BP 1",
                "Systolic BP 2",
                "Systolic BP 3")

melted_sys_lower %>%
  ggplot(aes(x = Var1, y = Var2, fill = value)) +
  geom_tile() +
  geom_text(aes(label = round(value, 2)), color = "black") +
  scale_fill_gradient2(low = "#ef8a62",
                       mid = "#f7f7f7",
                       high = "#67a9cf",
                       limits = c(-1, 1)) +
  scale_x_discrete(labels = sys_labels) +
  scale_y_discrete(labels = sys_labels) +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 90, hjust = 1),
        legend.justification = c(1, 0),
        legend.position = c(0.5, 0.7),
        legend.direction = "horizontal") +
  labs(fill = "Correlation \ncoefficient",
       x = "",
       y = "",
       title = "Correlation measures of systolic blood pressure at 3 times",
       subtitle = "Data collected from NHANES 2009-2012",
       caption = "Number presents correlation coefficient \nAll correlations are statistically significant (p < 0.05)")

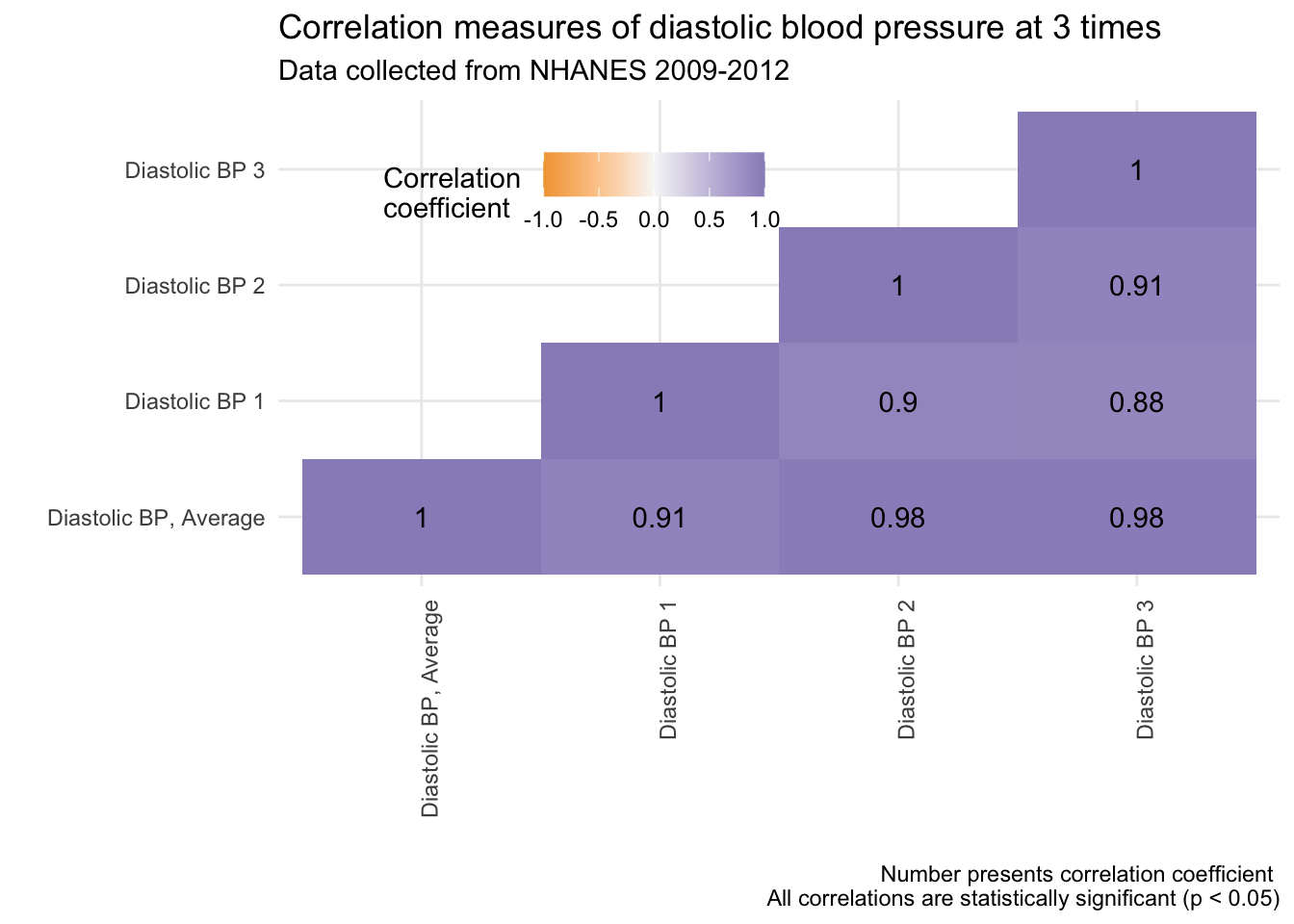

Plot diastolic

# create a vector of the systolic names for labeling
dia_labels <- c("Diastolic BP, Average",
                "Diastolic BP 1",
                "Diastolic BP 2",
                "Diastolic BP 3")

melted_dia_lower %>%
  ggplot(aes(x = Var1, y = Var2, fill = value)) +
  geom_tile() +
  geom_text(aes(label = round(value, 2)), color = "black") +
  scale_fill_gradient2(low = "#f1a340",
                       mid = "#f7f7f7",
                       high = "#998ec3",
                       limits = c(-1, 1)) +
  scale_x_discrete(labels = dia_labels) +
  scale_y_discrete(labels = dia_labels) +
  theme_minimal() +
  theme(axis.text.x = element_text(angle = 90, hjust = 1),
        legend.justification = c(1, 0),
        legend.position = c(0.5, 0.7),
        legend.direction = "horizontal") +
  labs(fill = "Correlation \ncoefficient",
       x = "",
       y ="",
       title = "Correlation measures of diastolic blood pressure at 3 times",
       subtitle = "Data collected from NHANES 2009-2012",
       caption = "Number presents correlation coefficient \nAll correlations are statistically significant (p < 0.05)")

2. How correlated are different physical measurements, health, and lifestyle variables?

In the NHANES dataset, there are data for subject BMI, Pulse, BPSysAve, BPDiaAve, TotalChol.

Create a series of plots to show the relationship between these variables with each other.

Wrangle

Create a dataframe that includes only the variables we want to correlate, and drop the observations with missing values.

nhanes_trimmed <- NHANES %>%
  select(BMI, Pulse, BPSysAve, BPDiaAve, TotChol) %>%
  drop_na()

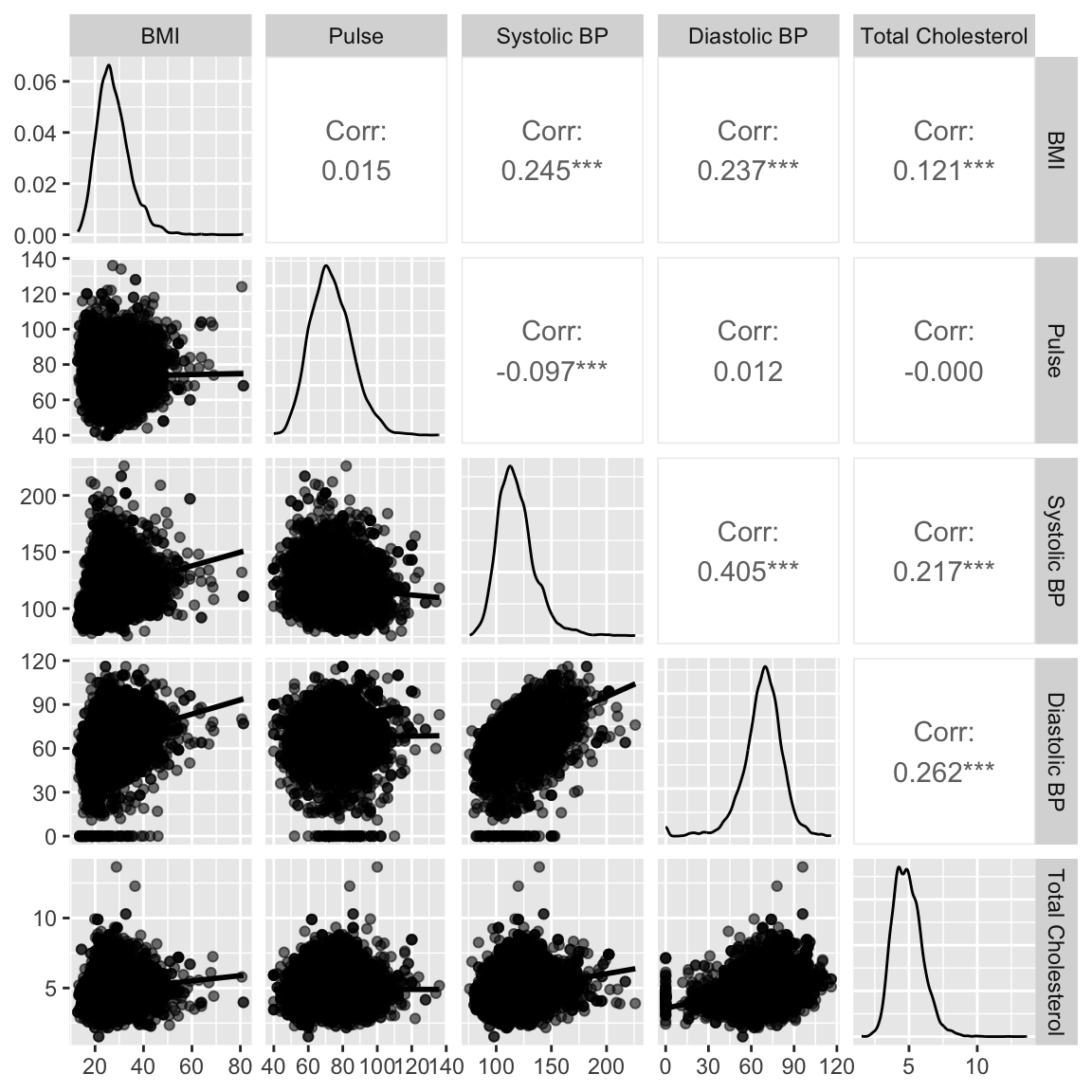

Visualize with `ggpairs()`

Here, we don’t have to specify columns since we’re using them all.

nhanes_trimmed %>%
    ggpairs(aes(alpha = 0.01), # note alpha inside aes which is weird idk why
            lower = list(continuous = "smooth"),
            columnLabels = c("BMI", "Pulse", "Systolic BP", "Diastolic BP", "Total Cholesterol"))

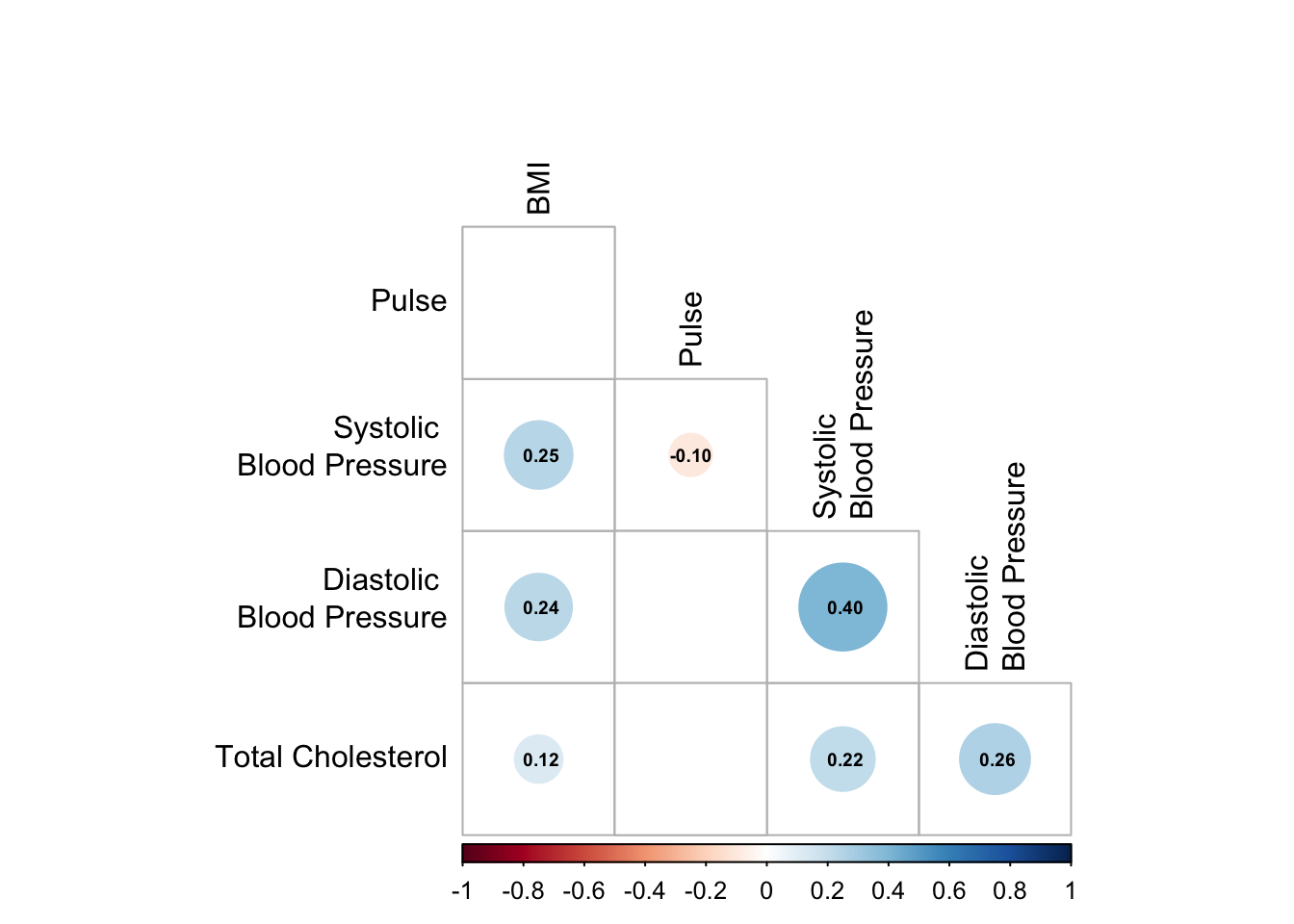

Create a correlation plot with `corrplot()`

First we will make our trimmed df a matrix.

# convert into a matrix as this is what corrplot takes
nhanes_trimmed_matrix <- nhanes_trimmed %>%
  as.matrix()

nhanes_rcorr <- rcorr(nhanes_trimmed_matrix, type = "pearson")

# correlation matrix
nhanes_rcorr$r

                BMI         Pulse    BPSysAve   BPDiaAve       TotChol
BMI      1.00000000  1.514764e-02  0.24526330 0.23705522  1.213842e-01
Pulse    0.01514764  1.000000e+00 -0.09670785 0.01217557 -9.486773e-05
BPSysAve 0.24526330 -9.670785e-02  1.00000000 0.40476431  2.174280e-01
BPDiaAve 0.23705522  1.217557e-02  0.40476431 1.00000000  2.620035e-01
TotChol  0.12138419 -9.486773e-05  0.21742801 0.26200353  1.000000e+00

# pvalue matrix
nhanes_rcorr$P

               BMI     Pulse BPSysAve  BPDiaAve  TotChol
BMI             NA 0.1772467        0 0.0000000 0.000000
Pulse    0.1772467        NA        0 0.2781342 0.993258
BPSysAve 0.0000000 0.0000000       NA 0.0000000 0.000000
BPDiaAve 0.0000000 0.2781342        0        NA 0.000000
TotChol  0.0000000 0.9932580        0 0.0000000       NA

Wrangle labels

# create a vector of how i want the labels to look
nhanes_labels <- c("BMI",
                   "Pulse",
                   "Systolic \nBlood Pressure",
                   "Diastolic \nBlood Pressure",
                   "Total Cholesterol")

# change row and column names of the correlation matrix
# so they are how we want them to be plotted
colnames(nhanes_rcorr$r) <- nhanes_labels
rownames(nhanes_rcorr$r) <- nhanes_labels

# change row and column names of the pvalue matrix
# so they are how we want them to be plotted
colnames(nhanes_rcorr$P) <- nhanes_labels
rownames(nhanes_rcorr$P) <- nhanes_labels

Make the correlation plot. The numbers are the correlation coefficients for relationships that are significant based on our criteria.

corrplot(nhanes_rcorr$r, # the correlation matrix
         type = "lower", # lower triangle
         tl.col = "black", # axis labels are black
         p.mat  = nhanes_rcorr$P, # pvalue matrix
         sig.level = 0.05, # how sig does a cor need to be to be included
         insig = "blank", # do not display insignificant correlations
         addCoef.col = "black", # display correlations in black
         diag = FALSE, # don't show the diagonal (because this is all 1)
         number.cex = 0.6) # size of correlation font

Introduction

1. How correlated are different measures of blood pressure?

Wrangling, creating two dataframes

Looking at relationships using scatteplots

Run correlation analysis with cor() and rcorr()

Prepare to plot with corrplot()

Plot with ggcorrplot()

Prepare to plot with melt() and ggplot()
