Introduction

Today is the first recitation for Module 4 where we put together a lot of the material we’ve learned in the first 3 modules of this course. Today’s material is on conducting principal components analysis (PCA) using R, and visualizing the results with some tools we’ve already learned to use, and some new wrangling and viz tips along the way.

A picture of NY style gooey pizza

Source
library(tidyverse) # everything
library(readxl) # reading in excel sheets
library(factoextra) # easy PCA plotting
library(glue) # easy pasting
library(ggrepel) # repelling labels away from their points
library(patchwork) # for combining and arranging plots

Read in data

We will be using data about pizza, which includes data collected about the nutritional information of 300 different grocery store pizzas, from 10 brands.

pizza <- read_csv(file = "https://raw.githubusercontent.com/f-imp/Principal-Component-Analysis-PCA-over-3-datasets/master/datasets/Pizza.csv")
Rows: 300 Columns: 9
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (1): brand
dbl (8): id, mois, prot, fat, ash, sodium, carb, cal

β„Ή Use `spec()` to retrieve the full column specification for this data.
β„Ή Specify the column types or set `show_col_types = FALSE` to quiet this message.

How different are each of the different brands of pizzas analyzed overall?

1. Run a PCA

Let’s take a look at this new dataset

knitr::kable(head(pizza))
brand id mois prot fat ash sodium carb cal
A 14069 27.82 21.43 44.87 5.11 1.77 0.77 4.93
A 14053 28.49 21.26 43.89 5.34 1.79 1.02 4.84
A 14025 28.35 19.99 45.78 5.08 1.63 0.80 4.95
A 14016 30.55 20.15 43.13 4.79 1.61 1.38 4.74
A 14005 30.49 21.28 41.65 4.82 1.64 1.76 4.67
A 14075 31.14 20.23 42.31 4.92 1.65 1.40 4.67
pizza_pca <- prcomp(pizza[,-c(1:2)],
                    center = TRUE,
                    scale = TRUE)

We can also look at the output of our PCA in a different way using the function summary().

summary(pizza_pca)
Importance of components:
                         PC1    PC2     PC3    PC4     PC5     PC6      PC7
Standard deviation     2.042 1.5134 0.64387 0.3085 0.16636 0.01837 0.003085
Proportion of Variance 0.596 0.3272 0.05922 0.0136 0.00395 0.00005 0.000000
Cumulative Proportion  0.596 0.9232 0.98240 0.9960 0.99995 1.00000 1.000000

We can convert this summary into something later usable by extraction the element importance from summary(alkaloids_pca) and converting it to a dataframe.

importance <- summary(pizza_pca)$importance %>%
  as.data.frame()

knitr::kable(head(importance))
PC1 PC2 PC3 PC4 PC5 PC6 PC7
Standard deviation 2.042494 1.513426 0.6438652 0.3085032 0.1663641 0.0183741 0.0030853
Proportion of Variance 0.595970 0.327210 0.0592200 0.0136000 0.0039500 0.0000500 0.0000000
Cumulative Proportion 0.595970 0.923180 0.9824000 0.9960000 0.9999500 1.0000000 1.0000000

By looking at the summary we can see, for example, that the first two PCs explain 92.32% of variance.

2. Make a scree plot of the percent variance explained by each component

Using fviz_eig()

We can do this quickly using fviz_eig().

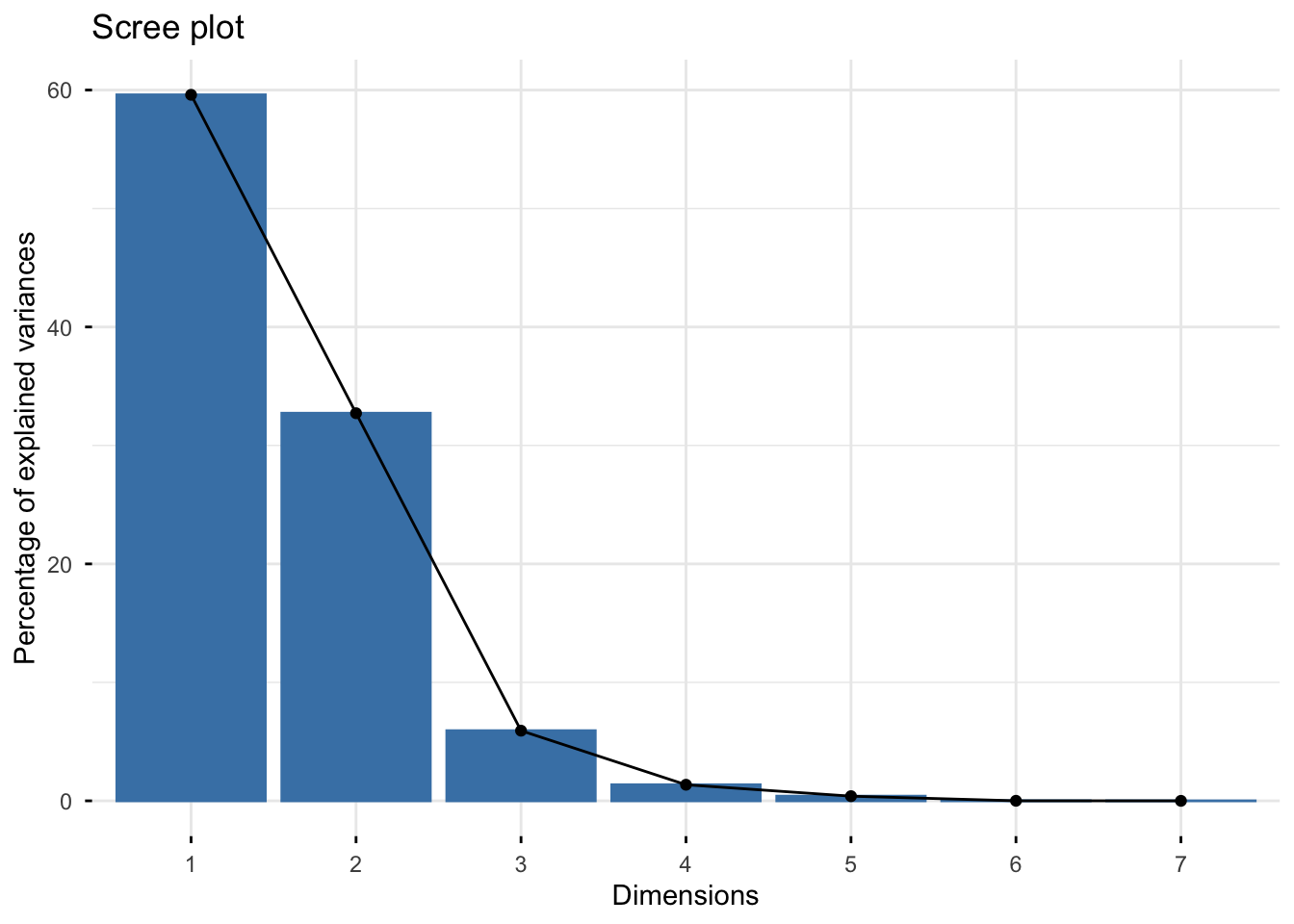

fviz_eig(pizza_pca)

Manually

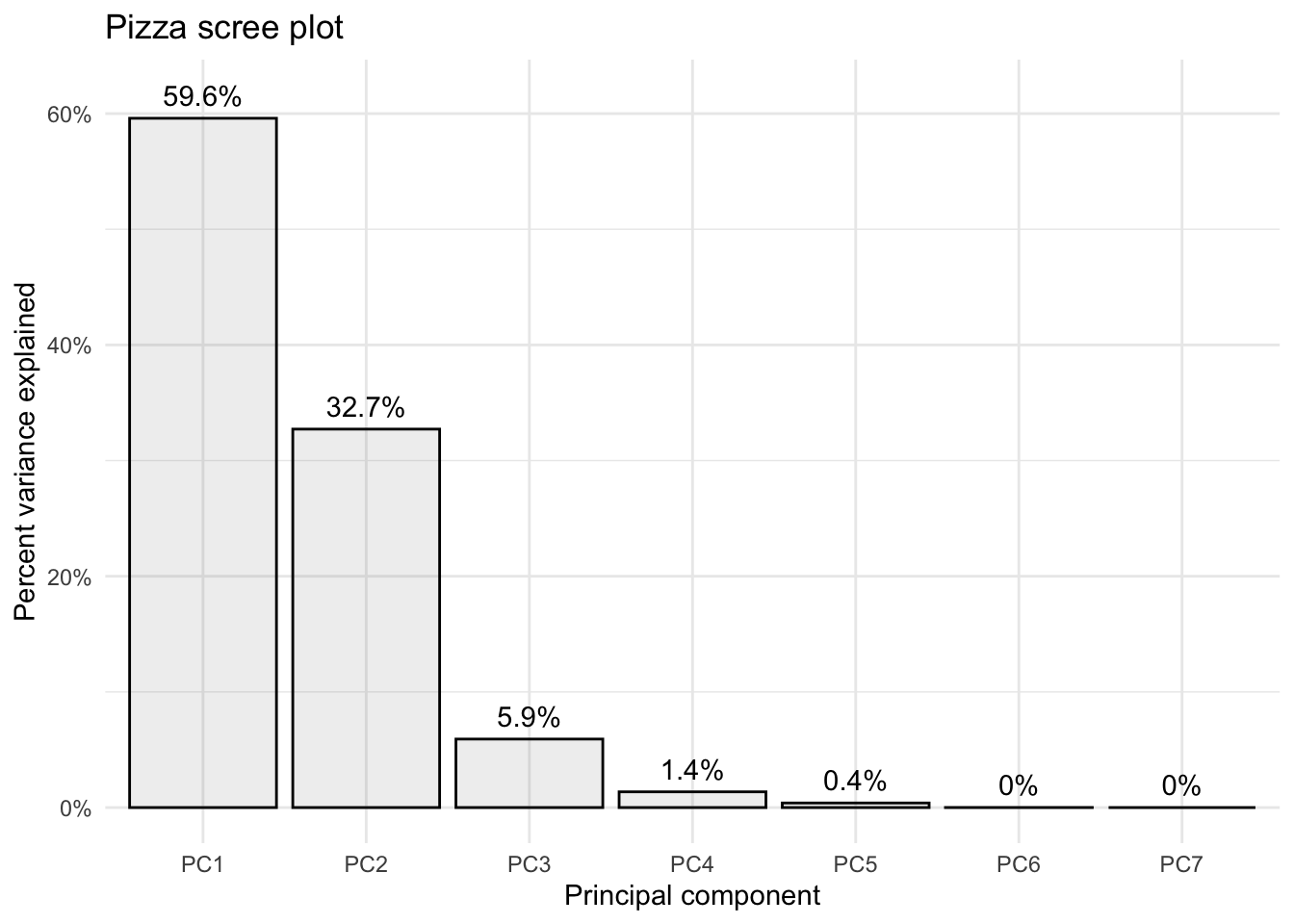

If you wanted to make a scree plot manually, you could by plotting using a wrangled version of the importance dataframe we made earlier.

# pivot longer
importance_tidy <- importance %>%
  rownames_to_column(var = "measure") %>%
  pivot_longer(cols = PC1:PC7,
               names_to = "PC",
               values_to = "value")

# plot
importance_tidy %>%
  filter(measure == "Proportion of Variance") %>%
  ggplot(aes(x = PC, y  = value)) +
  geom_col(alpha = 0.1, color = "black") +
  scale_y_continuous(labels = scales::percent) +
  theme_minimal() +
  labs(x = "Principal component",
       y = "Percent variance explained",
       title = "Pizza scree plot")

3. Make a scores plot of samples, coloring each sample by its brand

Using fviz_pca_ind()

We can also look at a scores plot using fviz_pca_ind() where ind means individuals. Here, each point is a sample.

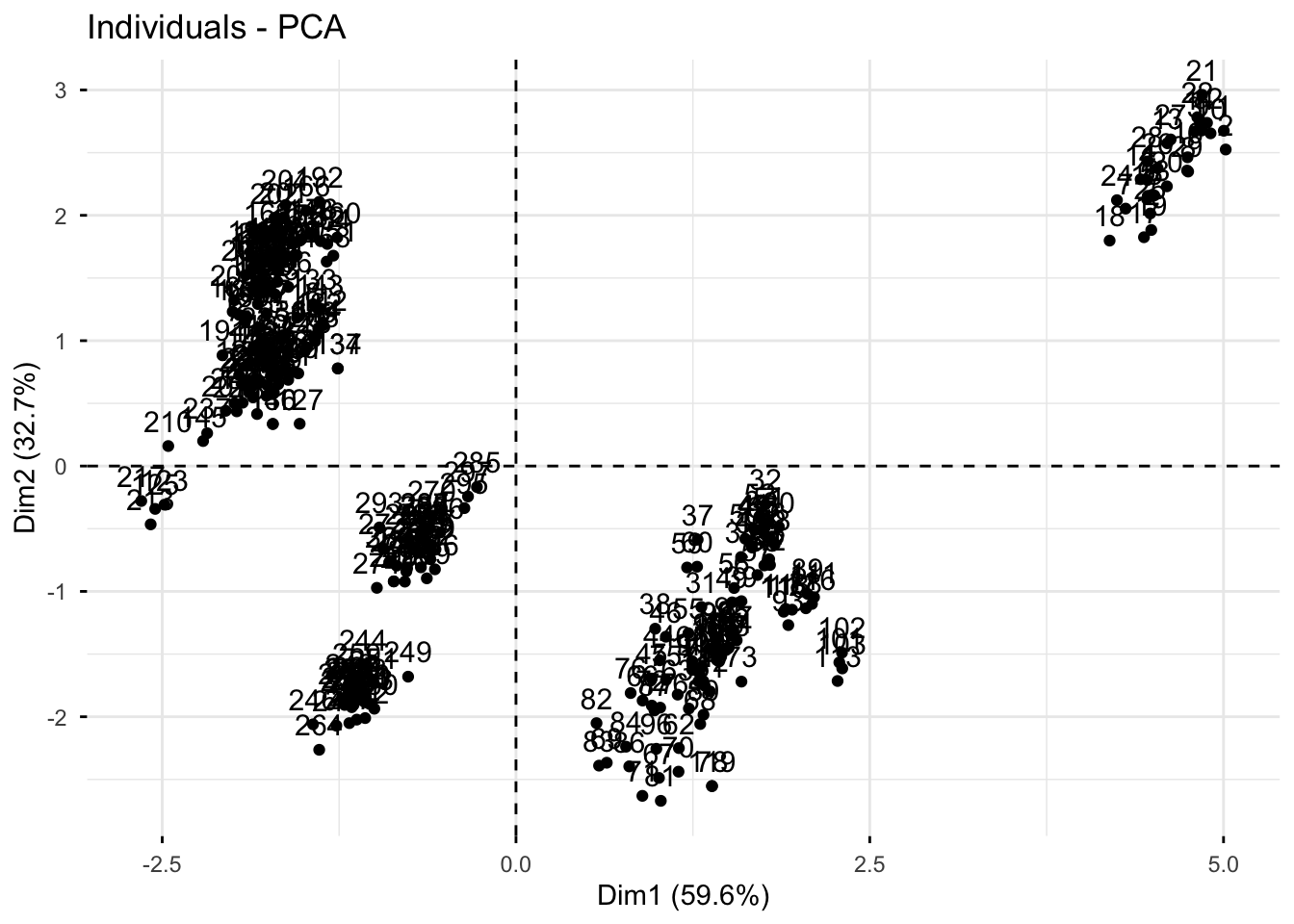

fviz_pca_ind(pizza_pca)

Manually

We want to plot the scores, which are in provided in pizza_pca$x.

We can convert the list into a dataframe of scores values by using as.data.frame(). Then we can bind back our relevant metadata so they’re all together. Note, to use bind_cols() both datasets need to be in the same order. In this case they are so we are good.

# create a df of alkaloids_pca$x
scores_raw <- as.data.frame(pizza_pca$x)

# bind meta-data
scores <- bind_cols(pizza[,1], # first columns
                    scores_raw)
# create objects indicating percent variance explained by PC1 and PC2
PC1_percent <- round((importance[2,1])*100, # index 2nd row, 1st column, times 100
                     1) # round to 1 decimal
PC2_percent <- round((importance[2,2])*100, 1)

# plot

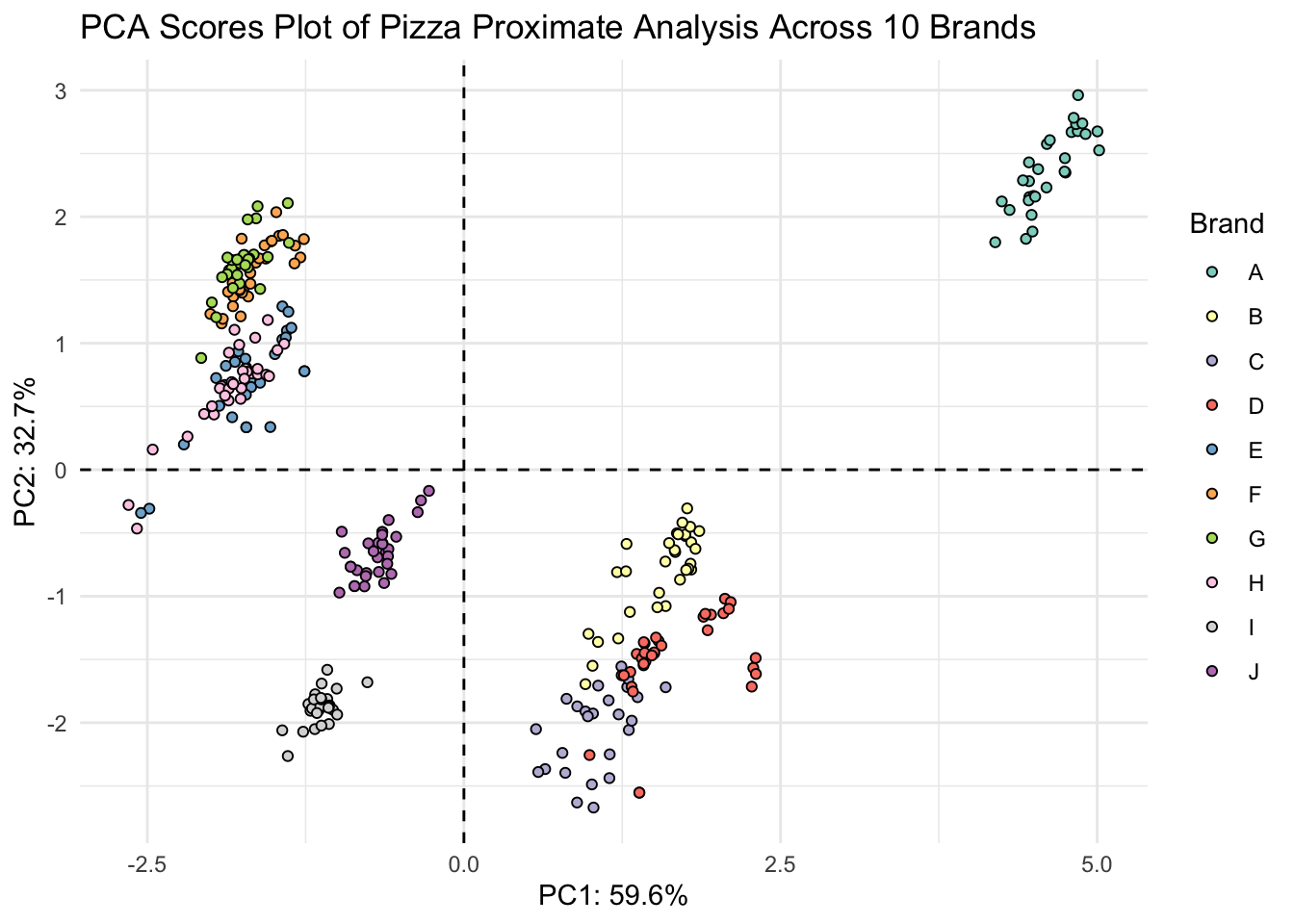

(scores_plot <- scores %>%
  ggplot(aes(x = PC1, y = PC2, fill = brand)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point(shape = 21, color = "black") +
  scale_fill_brewer(palette = "Set3") +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Scores Plot of Pizza Proximate Analysis Across 10 Brands",
       fill = "Brand"))

4. Make a loadings plot of samples

Using fviz_pca_var()

We can also look at a loadings plot using fviz_pca_var() where var means variables. Here, each point is a variable.

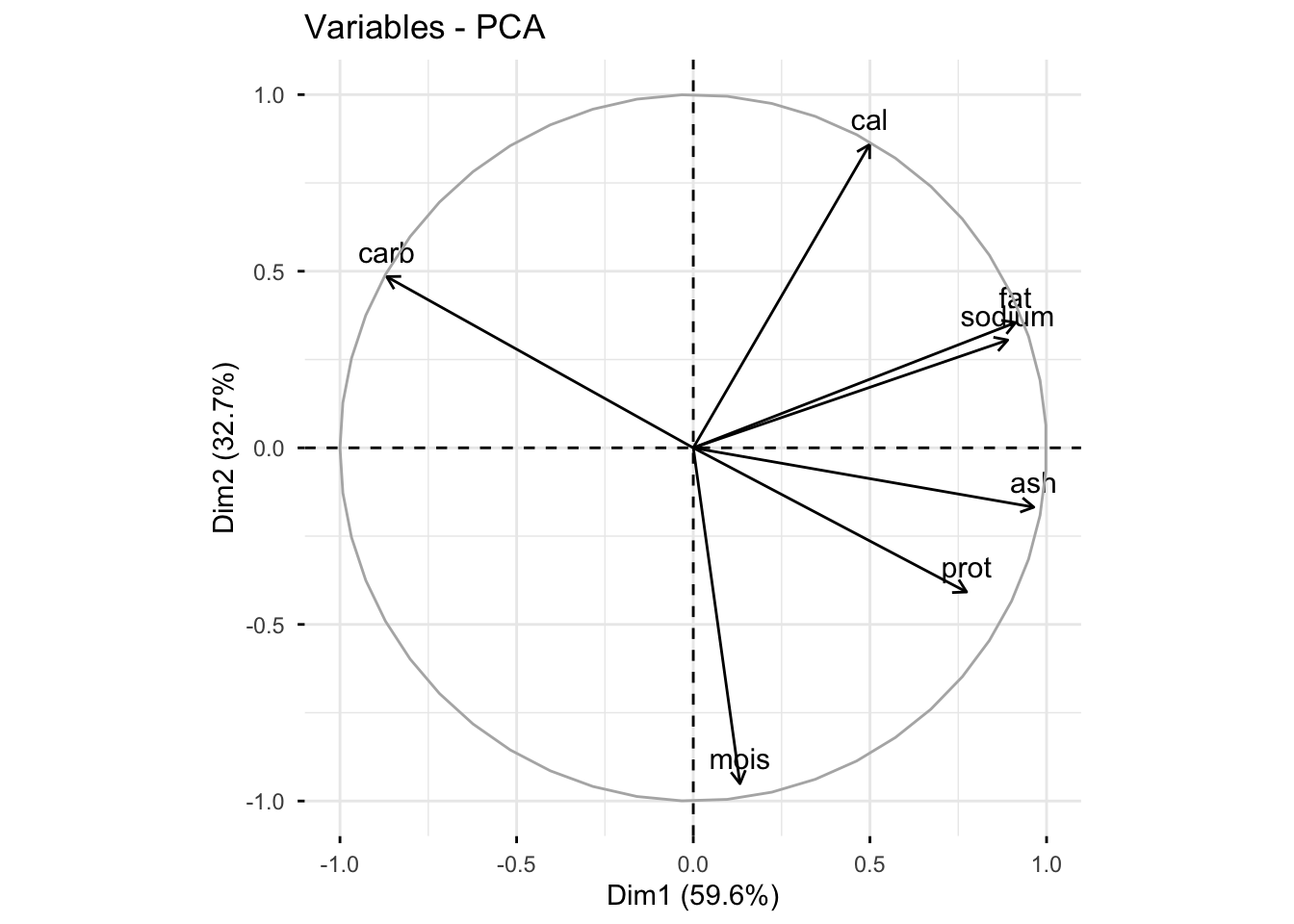

fviz_pca_var(pizza_pca)

Manually

We can also make a more customized loadings plot manually using ggplot and using the dataframe alkaloids_pca$rotation.

# grab raw loadings, without any metadata
loadings_raw <- as.data.frame(pizza_pca$rotation)

# convert rownames to column
loadings <- loadings_raw %>%
  rownames_to_column(var = "analysis_type")

# create vector of labels as we want them to appear
analysis_type_labels <- c("Moisture",
                          "Protein",
                          "Fat",
                          "Ash",
                          "Sodium",
                          "Carbo-\nhydrates",
                          "Calories")

We can then plot with ggplot like normal.

(loadings_plot <- loadings %>%
  ggplot(aes(x = PC1, y = PC2, label = analysis_type_labels)) +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point() +
  geom_label_repel() +
  scale_fill_brewer() +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Loadings Plot for Pizza"))

5. Create either a biplot, or a visualization that shows both your scores and loadings plot together.

With patchwork

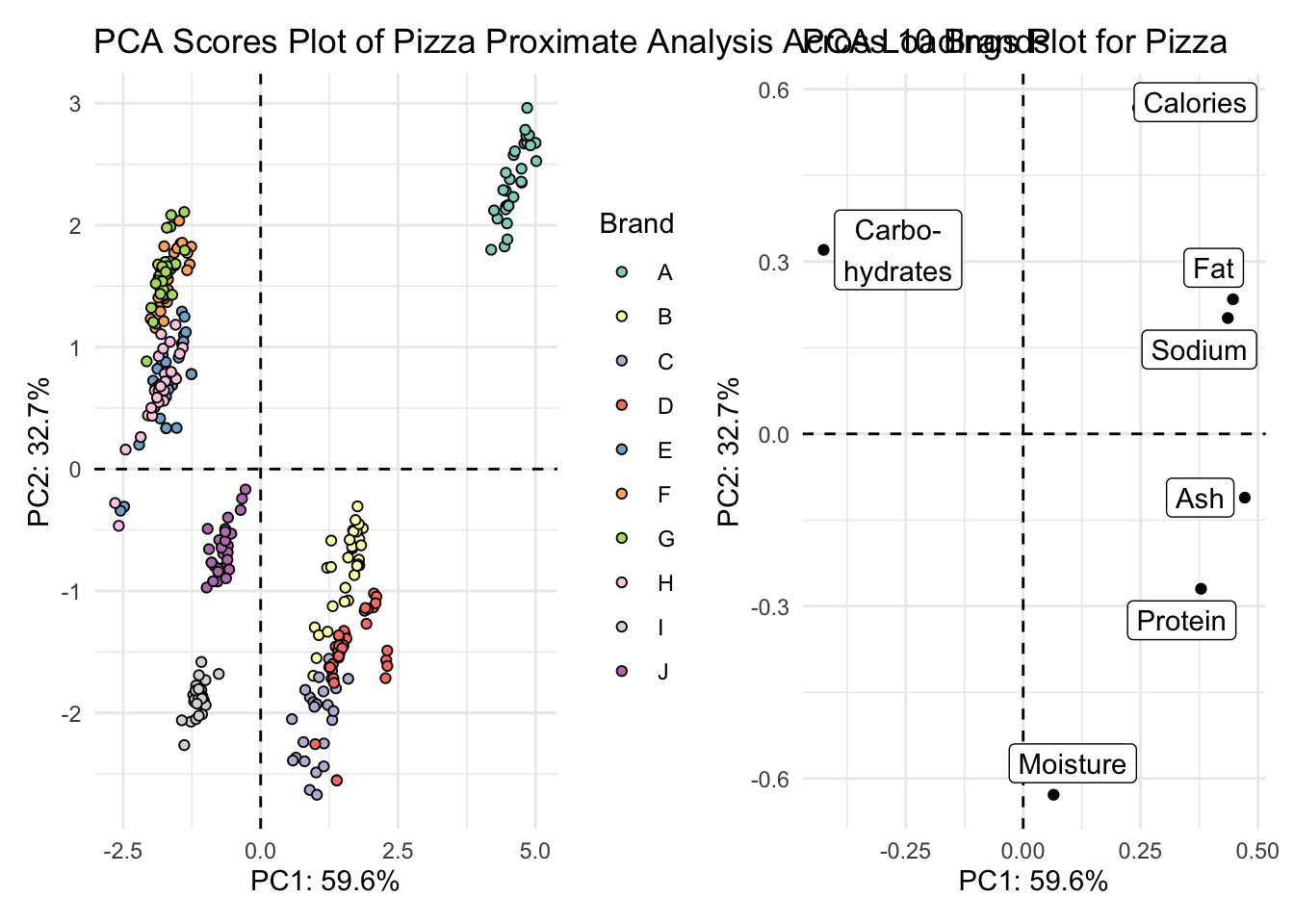

scores_plot + loadings_plot

Biplot

Using fviz_pca().

You can make a biplot quickly with fviz_pca(). Note, fviz_pca_biplot() and fviz_pca() are the same.

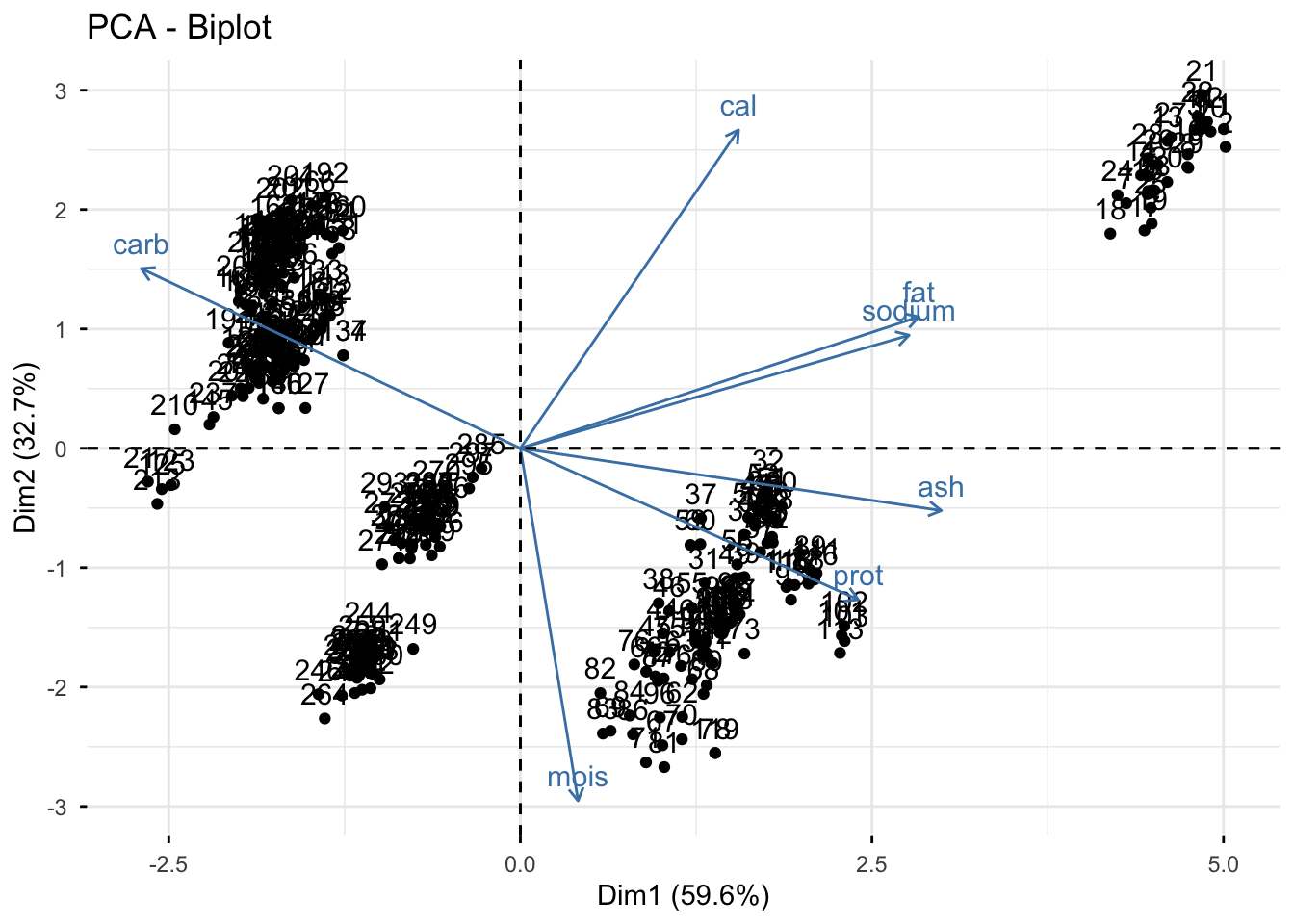

fviz_pca(pizza_pca)

Instead of making this plot manually, let’s go through how to alter the existing plot made with fviz_pca(). We can do this because factoextra creates ggplot objects. To start off, we need to be using a dataframe that includes our metadata.

# save as a new df
pizza_pca_labelled <- pizza_pca

# assign alkaloid_labels to rownames
rownames(pizza_pca_labelled$rotation) <- analysis_type_labels

# plot
fviz_pca(pizza_pca_labelled, # pca object
         label = "var",
         repel = TRUE,
         geom.var = c("text", "point", "arrow"),
         col.var = "black") +
  geom_point(aes(fill = pizza$brand), shape = 21) +
  scale_fill_brewer(palette = "Set3") +
  theme_minimal() +
  theme(legend.position = "none") +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),

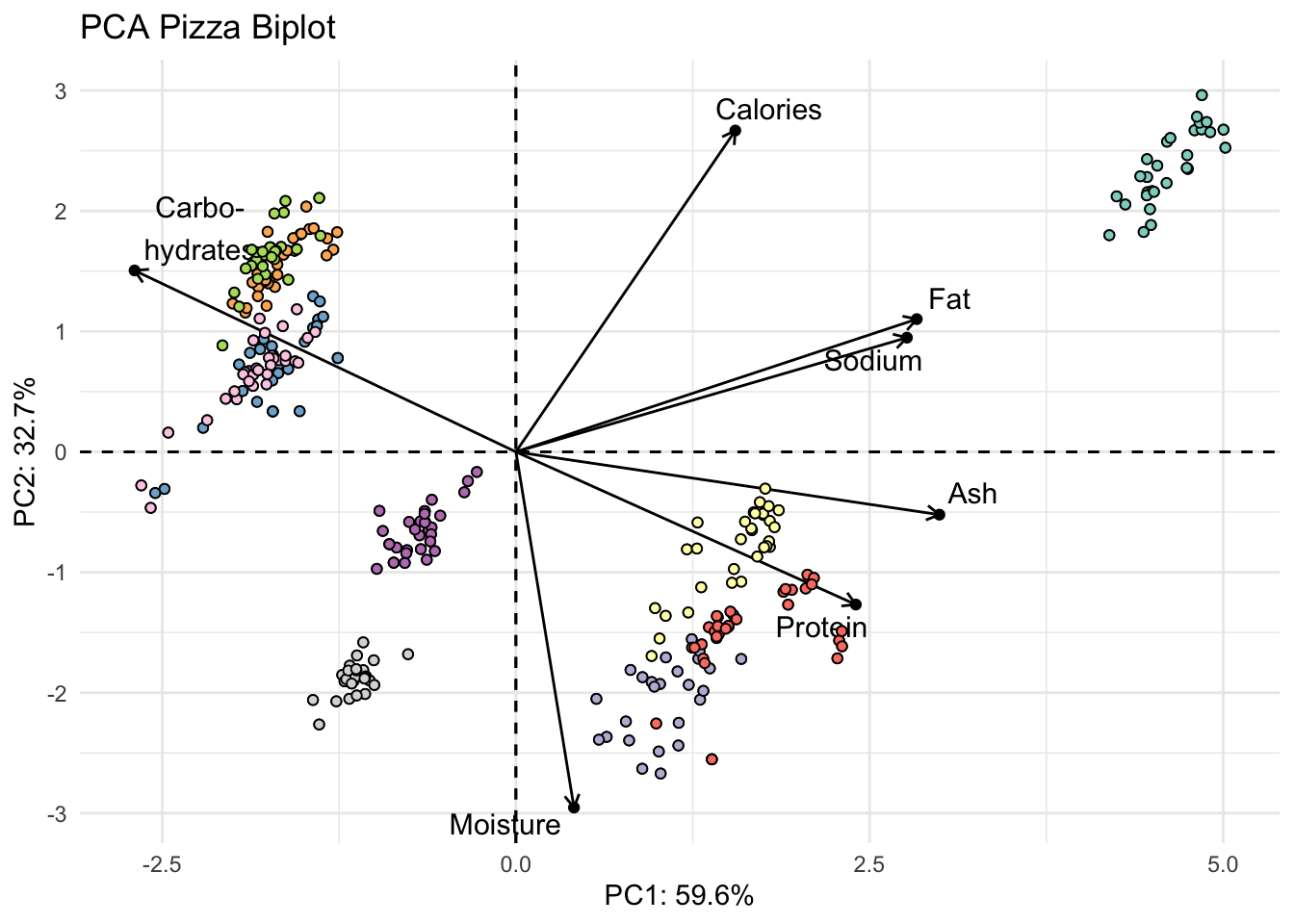

       title = "PCA Pizza Biplot",
       fill = "Brand")

Manually

Or we could do this manually. First we need to scale our data so that the scores and loadings are on the same scale.

I can write a quick function to allow normalization.

normalize <- function(x) return((x - min(x))/(max(x) - min(x)))

Then I can nornalize the scores using the scale function, since the loadings are already normalized.

scores_normalized <- scores %>%
  mutate(PC1_norm = scale(normalize(PC1), center = TRUE, scale = FALSE)) %>%
  mutate(PC2_norm = scale(normalize(PC2), center = TRUE, scale = FALSE)) %>%
  select(brand, PC1_norm, PC2_norm, everything()) # reorder

How did it go? PC1_norm and PC2_norm should all now be between -1 and 1

head(scores_normalized) # looks good
# A tibble: 6 Γ— 10
  brand PC1_norm[,1] PC2_norm[,1]   PC1   PC2      PC3     PC4     PC5      PC6
  <chr>        <dbl>        <dbl> <dbl> <dbl>    <dbl>   <dbl>   <dbl>    <dbl>
1 A            0.653        0.475  5.00  2.67 0.0393   -0.144   0.284  -0.00233
2 A            0.654        0.448  5.02  2.53 0.0969   -0.353   0.215   0.00295
3 A            0.626        0.474  4.80  2.67 0.0753    0.108  -0.0350  0.00541
4 A            0.582        0.405  4.46  2.28 0.120     0.0539  0.174   0.00562
5 A            0.583        0.383  4.46  2.16 0.000736 -0.117   0.313   0.00169
6 A            0.587        0.384  4.50  2.16 0.175    -0.115   0.200   0.00518
# β„Ή 1 more variable: PC7 <dbl>

Now we can plot together the scores and loadings in one plot.

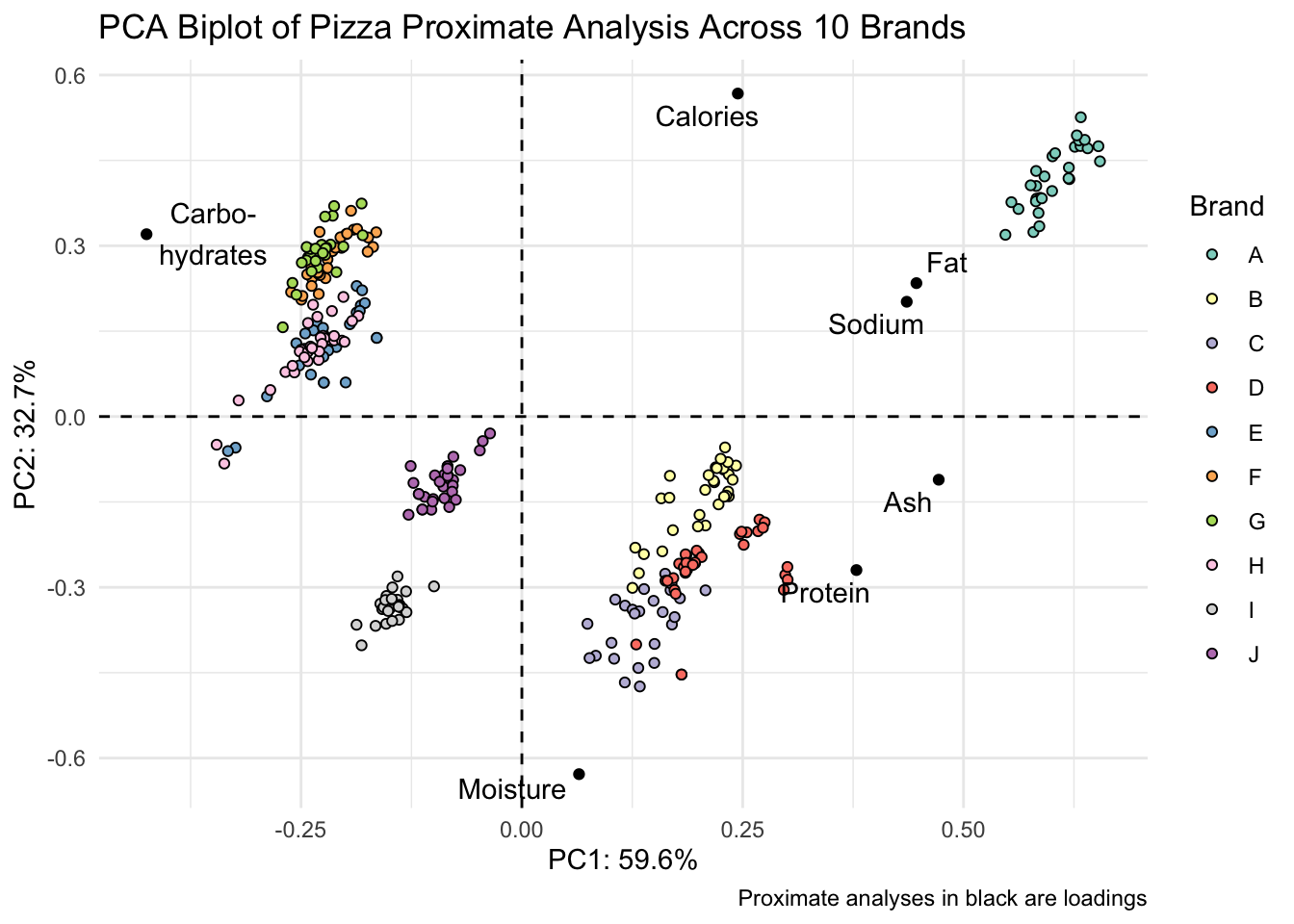

scores_normalized %>%
  ggplot() +
  geom_hline(yintercept = 0, linetype = "dashed") +
  geom_vline(xintercept = 0, linetype = "dashed") +
  geom_point(aes(x = PC1_norm, y = PC2_norm, fill = brand), shape = 21) +
  geom_point(data = loadings, aes(x = PC1, y = PC2)) +
  geom_text_repel(data = loadings,
                  aes(x = PC1, y = PC2, label = analysis_type_labels)) +
  scale_fill_brewer(palette = "Set3") +
  theme_minimal() +
  labs(x = glue("PC1: {PC1_percent}%"),
       y = glue("PC2: {PC2_percent}%"),
       title = "PCA Biplot of Pizza Proximate Analysis Across 10 Brands",
       fill = "Brand",
       caption = "Proximate analyses in black are loadings")
